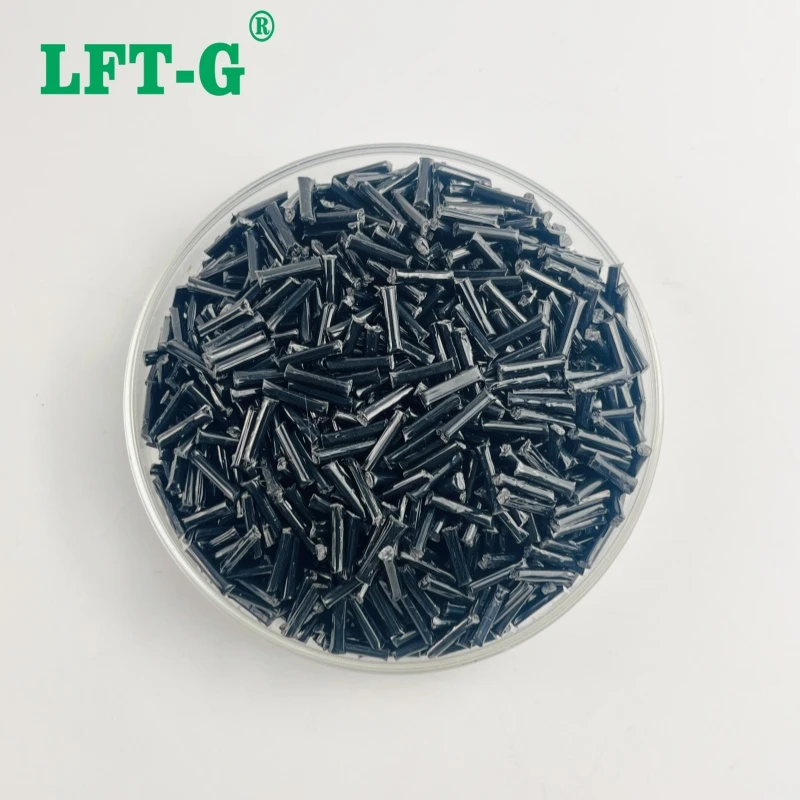

LFT-G® PA6 CF30 (BC03B)
LFT-G®PA6 CF30 yog qhov siab -kev ua tau zoo PA6 nrog30% ntev carbon fiberreinforcement, xasuperior cuam tshuam tsis kam, creep cwj pwm, thiab qaug zog endurance. Nws ntev - fiber ntau network ua kom muaj zog dua qhov nqus thiab qhov ruaj khov dua li luv luv -fiber composites- zoo tagnrho rau lub teeb yuag hlau hloov nrog tag nrho tsim kev ywj pheej thiab corrosion kuj.
Nta
- High tshwj xeeb nruj thiab lub zog
- Kev cuam tshuam zoo heev
- Superior nto zoo
- Zoo tshuaj tiv thaiv
- Kev ua tau zoo heev
- Superior qaug zog kuj
Khoom Specifications
Tej yam khoom siv tshuab:LFT-G® PA6 CF 30
| Khoom | Txuj | Tus nqi | Chav tsev |
| Tensile zog | TS EN ISO 527 | 231 | Mpa |
| Tensile Modulus | TS EN ISO 527 | 22120 | Mpa |
| Tensile Elongation | TS EN ISO 527 | 0.8 - 1.5% | / |
| Flexural zog | Qauv TSIS MUAJ: ASTMD-638 | 330 | MPa |
| Flexural Modulus | Qauv TSIS MUAJ: ASTMD-790 | 14088 | MPa |
| Notched Impact Strength | Qauv TSIS MUAJ: ASTMD-790 | 35 | kJ/m² |
Cov Txheej Txheem Ua Haujlwm
Txhawm rau ua kom pom kev ua tau zoo thiab txo qis fiber ntau tawg thaum lub sij hawm txhaj tshuaj molding ntawm LFT-G® PA6- CF30, ua raws li cov kev pom zoo ua cov kauj ruam thiab cov kev txwv:
| Parameter | Pom zoo Range | Cov Lus Cim Tseem Ceeb rau PA6 LCF30 |
| Kev ziab kub ① | 90-110 degree | Siv lub tshuab desiccant / tshuab ziab khaub ncaws kom tsis txhob hydrolysis |
| Lub Sijhawm Qhuav ① | 3-4 teev | Xyuas kom tsis tu ncua noo noo tshem tawm ua ntej ua |
| Melt Temperature (Nozzle) ③ | Kub ntawm 210-240 degree | Tsis txhob overheating kom ruaj khov fiber ntau |
| Pwm Kub ② | 40-60 degree | Balances flowability thiab ib feem seem stability |
| Txhaj Ceev | Slow rau Nruab Nrab | Txo cov fiber ntau tawg thiab sab hauv shear |
Cov lus qhia tseem ceeb:
Ntsia Hlau: Tsawg- compression ntsia hlau kom txo cov fiber ntau tawg
Gating: Dav dav qhov rooj rau cov khoom ntws zoo
Cov ntawv thov: Qhov twg LFT-G®PA6 CF30 xa khoom
Automotive Lightweighting
Hloov cov hlau thiab luv -fiber composites hauvlub rooj zaum cov qauv, pedal cab kuj, thiab roj teeb ncej. LFT-G®PA6 CF30 xa mus txog40% poob phausthaum tiv taus cov dej hauv qab thiab cov khoom thauj tsis muaj zog-zoo tagnrho rau EV thiab siab - tsheb ua haujlwm.
Muaj Machinery & Robotics
Precision Cheebtsam xws lirobotic caj npab, grippers, thiab conveyor modulesthov dimensional stability. Qhov ntev carbon fiber network txo qis nkag thiab warpage, kom ntseeg tau tias muaj tseeb nyob rau hauv siab -cycle automation.
Cov Khoom Ua Si & Leisure

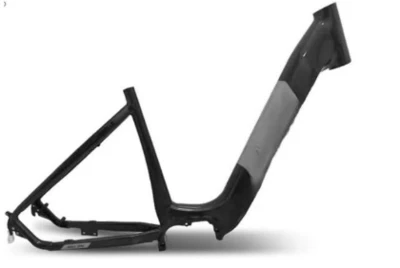

Los ntawmtsheb kauj vab thav duab ntxig rau ski khi thiab tiv thaiv iav, cov ntaub ntawv no muab lub zog - rau - qhov hnyav piv rau cov neeg ncaws pob xav tau. Kev nqus hluav taws xob siab tiv thaiv kev puas tsuaj los ntawm kev cuam tshuam.
FAQ
Q: Qhov txawv ntawm LFT-G®PA6 CF30 thiab luv-carbon-fiber PA6?
A: Ntev carbon fibers (6–25 mm) tsim ib qho kev sib txuas sib txuas uas ua rau muaj kev cuam tshuam zoo dua, kev nqus lub zog ntau dua, thiab kev ua haujlwm zoo dua qub dua li luv luv - fiber ntau -txawm tias cov ntsiab lus ntau dua.
Q: Tau LFT-G®PA6 CF30 hloov hlau hauv cov khoom siv?
A: Yog. Nrog rau lub zog- rau- qhov hnyav piv rau aluminium, mus txog 40% qhov hnyav txuag, thiab cov tshuaj tiv thaiv zoo rau cov roj thiab cov roj, nws yog qhov pov thawj poob- hloov pauv rau machined lossis tuag- nrum hlau cov khoom- tsis muaj corrosion los yog lwm yam haujlwm.
Q: Dab tsi kev lag luam feem ntau siv cov khoom no?
A: Automotive (lub teeb yuag brackets, pedal carriers), industrial robotics (grippers, caj npab), thiab cov khoom ua si (tsheb kauj vab, tiv thaiv iav)-txhua qhov chaw nruj, qhov hnyav, thiab kev qaug zog yog qhov tseem ceeb.
|
 Tshaj Tawm Cov Khoom Siv: Tus khub rau Kev Tsim Kho AdvancedTxhim kho koj tus qauv tsim nrog peb cov qib siab ntev -carbon-fiber composites. Koom tes rau qhov ua tau zoo tshaj plaws.
|
