Lft - g®PA6 CF40 BC04B Khoom siv
| Khoom npe |

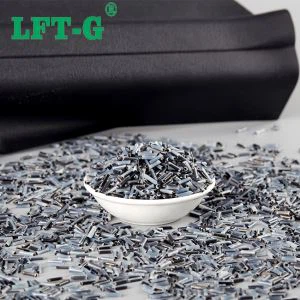

Lft - pap40 bc04bCarbon Fiber Nylon6 compound |
|
Qauv tsis tau
Matrix cob Hom |
LFT - pap pa6-bc04b Lft - pa 6+ lcf40% Polyamide 6 Lft - g® |
| Kev puv hom | 40% ntev carbon fiber (Suav teb) |

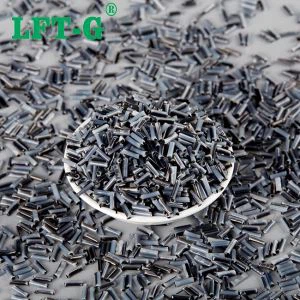

| Tus Muag Daim Ntawv | Cov pellets |
| Tab tom ua | Txhaj Tshuaj Molding |
| Tseem ceebNta |
Kev coj ua, ib tug heevHigh Modulus, Cov Khoom Zoo Kuj, thiab ib qho kev sib qaim hluav taws xob tsis tshua muaj, ua rau nws xaiv premier rauHloov Chaw Hlau. |
Dab tsi yog PA6 CF40?
Lft - g®BC04B PA6 CF40 yog 40% ntev carbon fiber (Suav ntev carbon fiber (Suav tus) txhawb polyamide6 (Nylon6) compound.Qhov siab siab - kev ua tau pa roj carbon fiberferced yas yog engineed rau cov ntawv thov muaj zog, thiab qhov hnyav heev, thiab qhov hnyav heev, thiab qhov hnyav heev, thiab qhov hnyav heev Los ntawm kev txhawb nqa lub ruaj khov polyamide 6 matrix nrog cov roj carbon fiber ntau, qhov kev ua tau zoo tshaj plaws ua rau muaj kev ua tau zoo tshaj {{{5} {{5 5}} fiber ntau. Nws yog kev teeb tsa lub teeb ci ntsa iab thaum koj xav tau los hloov cov hlau seem hauv tsheb, kev lag luam, thiab siab} Kev ntaus pob ncaws pob uas tsis tuaj yeem ua haujlwm.
Peb Cov Khoom
Kev Ua Haujlwm Siab BC03b Kev Ua Haujlwm Zoo BC03b Pa6 CF30 Pa Roj Carbon Fiber Nylon Tebchaw cov khoom siv Flexural zog 320 / 14500MPA
BC03A PA6 CF30 PaBab Carbon Fiber Nylon Tebchaw cov khoom siv Flexural zog 330 / 14800MPA
Kev Ua Haujlwm Siab BC05A Pa6 CF50 Fiber Hlon Fiber Nylon Tebchaw Lub Zog Flucharational zog 380 / 23000MPA
Yuav ua li cas muaj zog yog nylon carbon fiber cov khoom?
Lft - g®BC04B Pa6-cf40 datasheet vs lwm yam khoom siv
Cov Khoom Siv Neeg Kho TshuabNtiag tug |
Lft - g® PA6-CF40 (Ntev fiber ntau) |
Luv luv fiber PA6-CF40 |
Tooj dawb (6061-T6) |
Ib yam |
Kuaj Tus Qauv |
|---|---|---|---|---|---|
| Lub zog tensile | 261 | 238 | 310 | MPa | ISO 527 |
| Lub zog flexural | 375 | 345 | 276 | MPa | Iso 178 |
| FLEXURAL Modulus | 20596 | 17289 | 68900 | MPa | Iso 178 |
|
Nti Tsis Yog Qhov Charpy Cuam tshuam lub zog (23 degree) |
31 | 28 | N/A | KJ / M² |
ISO 179
|
| Kev nqus lus (ceev) | 1.29 | 1.28 | 2.70 | g / cm3 | ISO 1183 |
Lwm cov khoomNtiag tug |
Tus nqi |
Ib yam |
Kuaj Tus Qauv |
|---|---|---|---|
|
Kev nqus lus (ceev)
|
1.29 |
g / cm³
|
ISO 1183
|
|
Moulding shrinkage (txaus)
|
0.1 - 0.3 | % |
Iso 294-4
|
|
Thaum Tshav Kub Kub Deflection Kub (1.8MPA)
|
208 |
tiv kis
|
ISO 75-2 / A |
Tsis paub tseeb:Thov Nco Tseg: Cov ntaub ntawv muab rau LFT - g®PA6 CF40 sawv cev rau cov nqi ua tau los ntawm cov tswj kev ua haujlwm hauv tsev raws li cov qauv haujlwm thoob ntiaj teb. Cov nuj nqis no tau npaj rau kev siv thiab sib piv cov hom phiaj nkaus xwb. Cov yam ntxwv kawg ntawm cov khoom siv me me tuaj yeem cuam tshuam los ntawm kev ua cov tsis muaj, qhov tsim qauv, cov khoom lag luam tsis sib xws, thiab lwm yam kev lag luam sib txawv.
Download ua tiav BC04B PA6-CF40 datasheet PDF
Cov ntaub ntawv ua

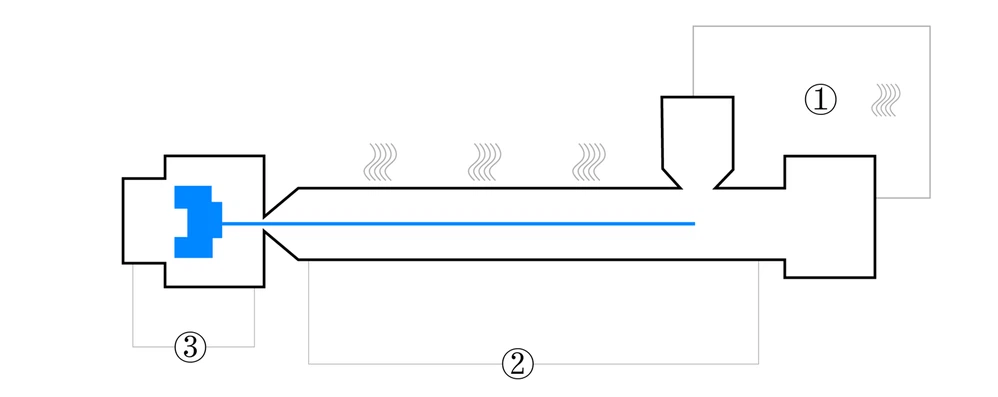

Txhawm rau kom qhib cov peev txheej ntawm LFT - g®PA6 CF40, kho kom tswj tau ntawm kev txhaj tshuaj molding txheej txheem yog qhov tseem ceeb heev. Ua ib polyamide {{3} Raws li cov polymer, ua ntej ua ntej ua ntej yog qhov tseem ceeb kom tiv thaiv hydrolysis. Ua ntawm nce siab yaj thiab pwm qhov kub yog qhov yuav tsum tau ua kom ntseeg tau cov homogeneous yaj thiab khaws cov kev ncaj ncees ntawm cov pa roj carbon fiber network.
| ①drying sijhawm | 4-6 teev |
|
Kom Qhuav |
80-110 DEGREE |
| ② Qhov Kub Siab Kub Cheeb Tsam (yaj) | 240-270 degree |
| ③mold kub | 60-95 degree |
Vim li cas thiaj xaiv cov pa roj carbon fiber thiab tsis luv luv?
Qhov kev xaiv ntawm ntev thiab luv carbon fiber yog qhov tseem ceeb rau kev ua tiav kev ua tau zoo. Ib tug ntev carbon fiber composite tsim cov pob txha hauv cov pob txha sab hauv hauv lub zog, muab cov khoom siv dav dav, muab cov khoom siv hluav taws xob zoo dua, thiab cov creep tsis kam zoo dua. Cov qauv no tso cai rau kev hloov pauv kev nyab xeeb ntau dua raws cov fibers, ua rau nws qhov kev xaiv luv luv los hloov cov khoom hlau.
Cov txiaj ntsig tau puv carbon fiber
- Kev Muaj Zog & High Modulus
- Muaj peev xwm zoo
- Superior fatorume & creep tsis
- Zoo heev tas sab ruaj khov & Qaus Qaum
- Kev hnav zoo thiab tsis sib txhuam tsawg
- Xam hluav taws xob conductival rau ESD
Dab tsi yog carbon fiber pa6 khoom siv rau?
Ntev carbon fiber txhawb nylon, tshwj xeeb tshaj yog qhov high - kev kawm qib zoo li pebLft - g®Pa6 carbon fiber composite, yog siv rau qhov kev thov engineering uas muaj zog, txhav, thiab qhov hnyav yog qhov tseem ceeb. Hauv kev lag luam tsheb, nws yog qhov zoo tagnrho rau cov qauv txheej txheem thiab cov nkhaus. Rau aerospace thiab kev tiv thaiv, nws yog siv rau cov txheej txheem drone cov khoom thiab lub teeb yuag. Hauv cov chaw muaj kev nyab xeeb, nws ua tau zoo nyob rau hauv high- ceev rau machinery qhov chaw thiab neeg hlau loj. Qhov no PA6 CF40 yog cov khoom siv premier uas tsim los hloov cov hlau hauv ntau lub siab- kev siv ntxhov siab.
Automotive Feem
Lub siab tawv thiab lub teeb yuag ntawm cov kev sib xyaw no ua ib qhoPA6 CF40 AUDIIb feem kev xaiv zoo rau kev hloov cov hlau hauv high {{lawb cov txheej txheem, pab cov hom khoom kim heev thiab ua tau zoo hom phiaj.
Cov Kws Tshaj Lij Insight: Lub neej tom ntej ntawm lub teeb tsheb npav hnyav
"Peb tab tom pom kev thawb loj rau cov ntaub ntawv zoo li lft - g®PA6 CF40 nyob rau hauv kev lag luam automotive. Nws tso cai rau cov cuab yeej engineers los tsim cov kev ua ke, cov khoom sib xyaw uas hloov mult - cov sib dhos hlau sib dhos. Qhov no tsis yog txo qis qhov hnyav tab sis kuj tau cuam tshuam cov kauj ruam, sawv cev rau ib kauj ruam tseem ceeb hauv ntej hauv kev tsim kho, siab} kev lag luam tsheb tsim. "
- Cov txheej txheem Chassis Cov Txheej Txheem
- Lub rooj zaum thiab cov qauv txheej txheem
- Ntsuas Cov Vaj Huam Sib Luag
- Lub Cav thiab Powertrain nkhaus
- Pedal thawv thiab Shifter Sibtim
Tsheb kauj vab
Cov tawv ntoo zoo tshaj plaws - rau - qhov hnyav sib piv ntawm pebLft - g®PA6 CF40makes it a fantastic material for high-performance sporting goods where reducing weight while increasing strength is a key goal.
- High - kev caij tsheb kauj vab ua haujlwm thiab cov khoom siv
- Cheebtsam rau qhov siab -}} end }ောင်း khi
- Cov qauv txheem rau cov kev sib tw drones
- Lub teeb yuag rau cov phom pob ncaws pob
- High -} xaus nuv ntses lub cev thiab cov leeg
FAQ txog PA6 CF40
Puas yog cov pa roj carbon fiber ntaulon yas?
A: Yog, nws yog ib hom kev siab - Kev ua tau zoo `carbon fiber refiilced yas`. Lub Nylon (Polyamide) yog cov yas matrix, uas yog los txhawb nrog cov pa roj carbon fibers los tsim ib qho sib xyaw zoo li pebLft - g®PA6 CF40nrog cov khoom loj tshaj plaws.
Vim li cas cov pa roj carbon fiber ntawm Suav teb?
A: Peb muab cov siab siab - Zoo fiber ntau kom ntseeg tau tias kev ua tau zoo heev thiab muab tus nqi-} kev daws teeb meem rau peb cov neeg siv khoom. Rau kev siv nrog tshwj xeeb aerospace lossis hwm OEM qhov yuav tsum tau ua, pebLft - g®PA6 CF40Kuj tseem muaj nrog cov fibers los ntawm lwm lub ntiaj teb -} nrov npe hom yog thov.
