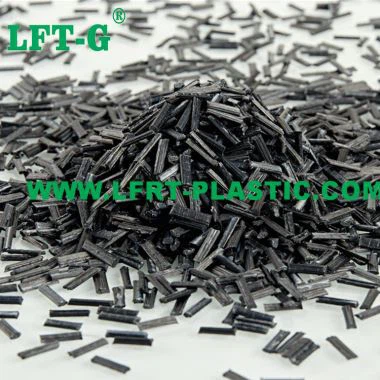

Thaum engineering xav kom muaj qhov nruj tshaj plaws - rau - qhov hnyav piv ua tau hauv cov thermoplastics,LFT-G^®PA6 CF 50(Model: BC05B) yog qhov tseeb xaiv. Qhov no high -qib composite integrates50% ntev carbon fiberrau hauv Polyamide 6 matrix, tsim cov khoom siv zoo txuas rau qhov sib txawv ntawm qib siab -plastics thiab aerospace- qib aluminium.

Ntau tus engineers nrhiav tus qauvPA6 CF 50(Short Fiber), tsuas yog kom pom tias qhov kev thauj khoom siab no ua rau cov khoom tawg. LFT-G^®daws qhov no siv proprietaryNtev Fiber Technology (LCF). Los ntawm kev tswj cov fiber ntau ntev ntawm 10-12 hli nyob rau hauv lub pellet, peb tsim ib lub hauv paus skeletal network. Qhov no tso cai rau peb 50% puv PA6 muab ib qho kev hloov pauv ntau tshaj26 GPathaum tuav lub toughness tsim nyog rau dynamic, sib tsoo-cov qauv tseem ceeb.

Vim li cas thiaj xaiv LFT-G^®Qeb 50% Carbon?

Txhaum Tus Nqi Barrier rau pawg ntau lawm.
Keeb kwm, 50% carbon fiber composites raug txwv rau niche aerospace tej yaam num vim tus nqi siab ntawm cov fibers txawv teb chaws (Toray / Tenax). LFT-G^®cuam tshuam kev lag luam no los ntawm kev siv tus nqi hwmHauv tsev T700-theem Ntev Carbon Fiber.

Performance Parity:Peb cov qib hauv tsev sib tw 98% ntawm cov khoom siv kho tshuab ntawm cov fibers txawv teb chaws ntawm ib feem ntawm tus nqi.
Strategic Availability:Nrog rau cov khoom lag luam hauv cheeb tsam, peb lav lub sijhawm ua haujlwm ruaj khov rau loj - nplai kev lag luam xaj, tiv thaiv kev lag luam thoob ntiaj teb quotas.
Consistent Impregnation:Peb qhov tshwj xeeb tuag- thev naus laus zis thev naus laus zis kom ntseeg tau tias txhua qhov fiber ntau filament tau ntub tag nrho, tiv thaiv "cov fibers qhuav" uas muaj nyob rau hauv siab - cov ntsiab lus sib tw.

LFT-G Domestic High Strength Carbon Fiber Spool for PA6 CF50

Daim duab 1: Premium Domestic Carbon Fiber Roving siv hauv LFT-G^®Ntau lawm.

Thov 50% LCF Sample Kit

Kev ua tau zoo: Cov nyhuv "Black Aluminium".

Unmatched Specific Modulus

Nrog qhov ceev ntawm tsuas yog 1.38 g / cm³, LFT-G^®PA6 CF50 yogib nrab ntawm qhov hnyav ntawm aluminiumtab sis muaj kev sib piv nruj. Qhov "Specific Modulus" no yog qhov tseem ceeb rau kev txo qis inertia hauv siab -ceev tig tshuab.

Superior EMI Shielding

At 50% loading, the carbon network is incredibly dense, providing conductivity levels close to metals (10²-10³Ohms). Nws ua raws li lub ntuj Faraday tawb rau rhiab electronics.

X-Ray Translucency

Tsis zoo li hlau, carbon fiber composites yog radiolucent. Qhov no ua rau BC05B yog ib tus neeg sib tw zoo tshaj plaws rau kev kho mob sab nraud cov cuab yeej kho mob qhov twg X-ray pom kev ntawm pob txha pob txha yuav tsum tau.

Technical Data Sheet (Model: LFT-G^®PA6-BC05B)

Khoom	Test Standard	Chav tsev	Tus nqi
Base Resin	-	-	Polyamide 6 (PA6)
Cov ntsiab lus Fiber	TS EN ISO 1172	%	50% Ntev Carbon Fiber
Qhov ntom	TS EN ISO 1183	g/cm³	1.38
Tensile zog	TS EN ISO 527	MPa	290 - 310
Tensile Modulus	TS EN ISO 527	GPa	34.0 - 35.0
Flexural zog	ISO 178	MPa	400 - 420
Notched Impact Strength	TS EN ISO 179	kJ/m²	23 - 26
Volume Resistivity	IEC 60093: Ua	Ω·m	10²-10³(Shielding zoo heev)

Download Ua tiav LFT® PA6-CF50 TDS (PDF)

Advanced Applications: Qhov twg Aluminium Fail

High speed textile machine picker rod

Siab -Speed Textile Machines

Picking Levers & Rods:Cov khoom no oscillate ntawm ntau txhiab lub voj voog ib feeb. PA6 CF50 txo qis inertia los ntawm 50% vs hlau, txo lub zog noj thiab nce lub tshuab ceev.

Medical exoskeleton structural limb made of PA6 LCF50

Kev kho mob Exoskeletons

Siv nyob rau hauv rehabilitation robotics. Cov khoom txhawb nqa tus neeg mob qhov hnyav thaum lub teeb txaus kom tsis txhob nqa lub cev muaj zog. Ntxiv rau, nws yog translucent rau X-rays.

Heavy lift drone center frame injection molded with PA6 CF50

Heavy-Lift UAV Frames

Hloov cov hlau sib dhos nyuaj lossis tes kim - tso carbon fiber. Txhaj tshuaj molding LFT-G^®PA6 CF50 tso cai rau kev tsim khoom sai ntawm cov drone monocoque lub cev.

Kev Ceeb Toom: 50% Kev Sib Tw Fiber

Cov Lus Qhia Tshwj Xeeb:Moulding 50% cov ntsiab lus fiber ntau txawv ntawm 30%. Lub viscosity yog siab, thiab kev pub mis tuaj yeem ua kom yuam kev.

Pub mis:Xyuas kom koj lub caj pas hopper txias kom tiv thaiv kev hla. Lub qhov taub loj dua (min 6-8mm) yog qhov yuav tsum tau ua kom tsis txhob txhaws.
Gate Design:Tsis txhob siv cov rooj vag pinpoint. Siv dav ntug rooj vag los yog sprue rooj vag kom ntseeg tau tias cov fibers ntev tuaj yeem ntws mus rau hauv cov kab noj hniav yam tsis muaj kev tawg.
Nto tiav:Cov pwm siab temps (100℃+) yuav tsum tau nkaum cov fiber ntau zoo nkauj (floating fibers) ntawm qhov chaw.

Cov neeg tseem nug

PA6 CF50 puas tuaj yeem hloov 7075 Txhuas?

Hauv qhov tawv nqaij- qhov tseem ceeb nruj, yog.Thaum 7075 Aluminium muaj zog dua nyob rau hauv lub zog tawm los, LFT-G^®PA6 CF50 muaj "Specific Strength" uas feem ntau tshaj txhuas. Rau qhov chaw uas feem ntau tiv thaiv kev khoov lossis xav tau lub teeb yuag (drones, neeg hlau), PA6 CF50 yog qhov kev xaiv zoo tshaj plaws vim yog 50% sib dua.

Puas yog 50% Carbon Fiber Nylon hluav taws xob conductive?

High conductive.Nrog 50% carbon loading, lub percolation pib yog deb tshaj. Cov khoom siv ua tus neeg xyuas pib, ua rau nws zoo heev rau Electrostatic Discharge (ESD) kev tiv thaiv thiab EMI Shielding, tab sis haum rau insulating daim ntaub ntawv yam tsis muaj kev hloov kho.

Ntev npaum li cas fiber ntau cuam tshuam lub neej qaug zog hauv PA6 CF50?

Qhov tseem ceeb nthuav nws.Hauv luv fiber ntau (CF50) cov khoom sib xyaw, cov kab nrib pleb propagate sai ntawm fiber ntau. Hauv LFT-G^®Ntev Fiber (LCF50), cov fibers yog 10-12mm ntev thiab choj hla micro-cracks. Qhov no tso cai rau ib feem kom tiv taus ntau lab ntawm cov khoom siv hluav taws xob (kev vibrations) yam tsis muaj kev ua haujlwm, uas yog vim li cas nws thiaj li siv rau hauv textile machinery thiab cav mounts.

Thawb qhov txwv ntawm Thermoplastics

Thaum txhuas hnyav dhau lawm, thiab cov qauv yas tsis muaj zog heev, xaiv LFT-G^®PA6 CF 50.

Thov Quote Hu rau Engineers
