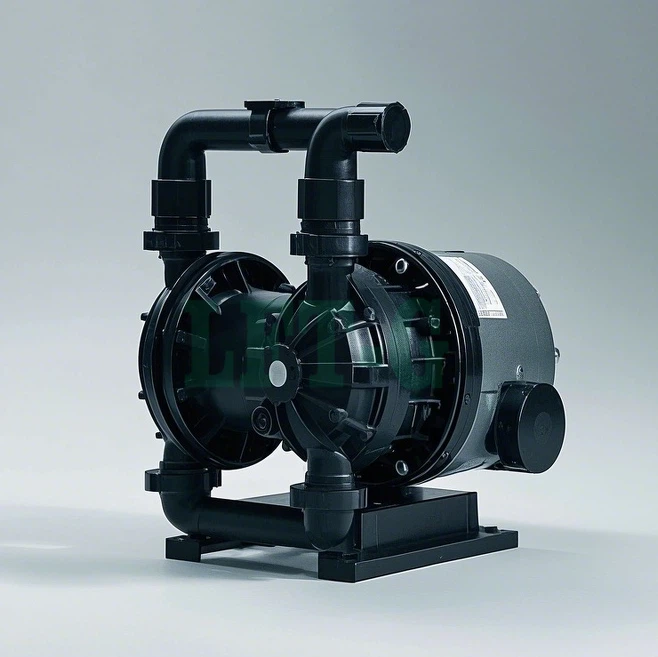

Lft-g®PP LGF40YD: Kev Ntsuas Qib Siab POLYPropylene Rau Cov Twj Tso Kua Dej Lub Cev Khoom Siv
Unleashing Robustness: txoj kev daws teeb meem zoo tshaj rau kev ua haujlwm siab rau qhov dej
Hauv qhov tseem ceeb ntawm kev tswj cov kua dej, qhov kev ntseeg tau thiab ruaj khov ntawm cov taub dej lub cev ua haujlwm tsis yog sib ceg.Lft-g®PP LGF40YDTawm los ua cov lus daws teeb meem txheej txheem, qhia meej engiered kom xa cov kev ua tau zoo hauv cov ntawv thov no. Qhov kev ua tau zoo no yog txhawb nqa cov iav ntev nrog cov khoom siv ntev uas muaj txiaj ntsig zoo ntawm 48KJ / M2Cov. Tus yam ntxwv txawb no, txuas nrog cov tshuaj lom neeg zoo thiab sab ruaj khov ruaj khov, ua rau lft-g®PP LGF40YD Txoj kev xaiv zoo tagnrho rau hloov cov ntaub ntawv tsoos xws li cov hlau hauv dej hauv lub cev siv. Muaj kev paub cov ntaub ntawv uas tsis tsuas yog tiv thaiv cov hlua ntawm kev ua haujlwm tas mus li tab sis kuj muaj kev txo qis, ua rau muaj kev txhim kho kom zoo thiab muaj peev xwm.
Qhov tseem ceeb ntawm LFT-G®PP LGF40YD Rau Cov Twj Tso Kua Dej Lub Cev Khoom Siv
- Tshwj xeeb kev cuam tshuam lub zog (48kj / m2):Muab cov kev cuam tshuam zoo tshaj plaws rau kev cuam tshuam tam sim ntawd thiab kev ntxhov siab, ua kom muaj kev ntseeg lub cev ntev ntawm lub cev.
- Cov tshuaj zoo heev:Withstands prolonged raug rau dej, txias txias, thiab lwm yam kua dej feem ntau hauv kev siv tsheb thiab muaj dej twj.
- Superior tas ruaj khov:Saib xyuas qhov tseeb tiag tiag raws li kev ua haujlwm sib txawv, ua kom muaj txiaj ntsig zoo ntawm kev sib khi ua haujlwm thiab cov tso kua mis ua tau zoo.
- Lub Hnav Tsho:Muaj cov khoom siv sib txawv ntawm cov tsoos hlau tsoos, muaj peev xwm cuam tshuam rau kev txuag hluav taws xob thiab yooj yim thaum sib dhos.
- Txhim Kho Durability thiab Longevity:Tsis kam hnav thiab ua kua muag los ntawm kev ua haujlwm tas mus li, txuas ntxiv kev pabcuam lub neej ntawm cov taub dej.
- Tsim qauv tsim:Tso cai rau kev tsim cov nyom thiab cov kom zoo tso kua mis lub cev ntsuas tshuaj ntsuas los ntawm kev txhaj tshuaj molding cov txheej txheem.
Los ntawm kev xaivLft-g®PP LGF40YDRau koj lub taub dej lub cev Cheebtsam, koj tab tom nqis peev rau cov khoom uas ua ntej kev ntseeg tau, kav ntev, thiab kev ua haujlwm. Peb cov kev cuam tshuam loj polypropylene composite tau raug tsim tshwj xeeb rau kev siv cov kua dej ua kua xav tau, muab cov kev xaiv zoo dua rau cov khoom siv zoo dua. Tshawb nrhiav lub peev xwm ntawm LFT-G®Cov ntaub ntawv thiab tus khub nrog peb mus rau engineer tom ntej no los cov dej twj uas teeb tsa cov qauv tshiab rau kev ua haujlwm zoo thiab ntev.
Hu rau peb cov kws paub cov kws tshaj lij
PP LGF40 cov ntaub ntawv cov ntaub ntawv
Cov ntaub ntawv no muab cov ntaub ntawv ua haujlwm rau 40% ntev fiber ntau txhawb polypropylene (lft-g® PP LGF40 yd) twj tso twj tso kua mis cuam tshuam cov khoom siv. Cov ntaub ntawv nthuav tawm ntawm no yog raws li cov txiaj ntsig tau txais los ntawmXiamen lft-g®Cov Khoom Siv Khoom Siv. Thov saib cov ntaub ntawv tshwj xeeb ntawm koj qhov kev pab cuam rau cov khoom siv LFT cov nqi.
Cov Khoom Siv Neeg Kho Tshuab
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Lub zog tensile | 130±5 | MPa | Iso 527-1 |
| Tensile modulus | 8600-9500 | MPa | Iso 527-1 |
| Elongation thaum so | 1.5-2.5 | % | Iso 527-1 |
| Lub zog flexural | 170-188 | MPa | Iso 178 |
| FLEXURAL Modulus | 5600-6900 | MPa | Iso 178 |
| Nonched izod cuam tshuam lub zog (+23 degree) | 53±5 | KJ / M² | ISO 180 / 1A |
| Nonched izod cuam tshuam lub zog (-30 degree) | 50±5 | KJ / M² | ISO 180 / 1A |
Thermal Khoom
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Melting kub | 210-250 | tiv kis | ISO 11357 |
|
Thaum tshav kub kub deflection kub (HDT / A, 1.8 MPA) |
158±2 | tiv kis | Iso 75-1 |
| Coefficient ntawm linear thermal expansion | 10-20 | x 10-6/K | ISO 11359 |
Lwm cov khoom
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Ceev | 1.21±0.01 | g / cm³ | ISO 1183 |
| Flammability (UL 94) | HB | - | UL 94 |
| Kev nqus dej noo (24 teev) | 0.01-0.03 | % | ISO 62 |
Cov lus piav qhia
- Lft-g® PP LGF40 Yd TO THOUP
- Copo polypropylene
- 40% cov iav ntev fiberas
- Tso Lub CevQib Kev Tiv Thaiv
- Seem ruaj khov
- Creep resistant
- Kev Xav Tau Loj
Cov Lus Qhia thiab Cov Ntaub Ntawv Ntxiv:
Cov ntaub ntawv tau los:Cov ntaub ntawv no tau muab tso ua ke raws li cov cai pom muaj nyob hauv kev tshaj tawm muaj pov thawj los ntawmXiamen lft-g® PP LGF400 cov khoom tsim khoom lag luam. Rau cov ntaub ntawv qhia meej thiab cov ntaub ntawv tshwj xeeb rau koj cov programme, thov sab laj Datasheet muab los ntawmPeb cov khoom siv.
Download tau tiav LFT PP cov ntaub ntawv ntawv PDF
