PP LGF40 Khoom Taw Qhia & Specifications
Tshooj lus no txhais cov qib kev lag luam, cov txheej txheem polymer thiab cov khoom tseem ceeb ntawm LFT-G®PP LGF40 yog li cov kws tsim khoom thiab pab pawg yuav khoom tuaj yeem paub meej sai sai tias cov qib sib xws rau lawv cov hlau hnyav - hloov cov kev xav tau.
| Khoom | Specification |
|---|---|
| Qib khoom | LFT-G® PP-NA-LGF40 |
| Hom khoom | 40% Ntev iav Fiber Reinforced Polypropylene |
| Polymer Matrix | Homopolymer Polypropylene (HPP) |
| Cov ntsiab lus iav Fiber | 40% |
| Muaj Xim | Ntuj / Custom Black |

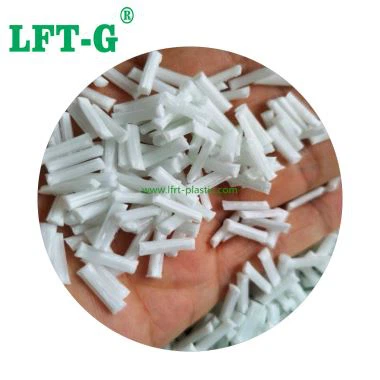

| Daim ntawv | Pellet (ntev: 10mm - 12mm) |
| Txoj kev ua | Txhaj Molding (High Flowability) |
Cov khoom siv zoo ntawm PP LGF40
| Khoom | Txuj | Tus nqi |
|---|---|---|
| Qhov ntom | TS EN ISO 1183 | 1.21 g / cm³ |
| Tensile zog | TS EN ISO 527 | 135 MPa |
| Tensile Modulus | TS EN ISO 527 | 8,900 MPa |
| Molding Shrinkage | TS EN ISO 294-4 | 0.15 - 0.25 % |
| Khoom | Txuj | Tus nqi |
|---|---|---|
| Flexural zog | ISO 178 | 169 MPa ua |
| Flexural Modulus | ISO 178 | 6,800 MPa |
| Charpy Notched Impact | TS EN ISO 179 | 35 kJ/m² |
| HDT (1.80 MPa) | ISO 75 | 159 degree |
Cov txiaj ntsig zoo yog nyob ntawm cov qauv kuaj kuaj thiab tsuas yog muab rau kev siv xwb. Moulded tiag tiag- qhov ua tau zoo tuaj yeem sib txawv nrog cov cuab yeej tsim thiab kev txhaj tshuaj.
Cov Txheej Txheem Ua Haujlwm rau PP LGF40 Resin
Ua ntej- ziab
80-100℃/ 2h
Xyuas kom dej noo <0.1%
Txhaj tshuaj
Kub kub: 230-260 degree
Optimize rau nyias phab ntsa
Tooling Settings
Pwm Temp: 40-80 degree
Qhov Loj Loj Loj Loj Yuav Tsum Tau
Siab -Tsev tawv daim ntawv thov rau Complex Architectures
Automotive Electronic Shift Lever Bases
Kev hloov tsheb niaj hnub no-los ntawm-wire modules muaj qhov sib txawv heev, nyias-cov qauv geometry ntawm phab ntsa. Siv cov khoom hnyav hnyav LGF50 tuaj yeem ua rau muaj kev txwv tsis pub khiav thiab txhaj tshuaj luv luv. PP LGF40 muab qhov zoo tshaj plaws 9,000 MPa rigidity los tiv thaiv ntau lab ntawm kev hloov pauv thaum tswj hwm qhov kev txhaj tshuaj zoo tshaj plaws uas xav tau los ua kom cov pwm kab noj hniav tsis zoo.
Industrial Fluid Pump & Valve Housings
Cov twj tso kua dej muaj zog yuav tsum muaj lub zog tawg loj heev thiab muaj peev xwm nkag tau los tiv thaiv kom tsis txhob xau ntev -lub sij hawm hydrostatic siab raug. Lub 40% intertwining fiber network tiv thaiv kev puas tsuaj sai sai, hloov pauv cov khoom kim heev tuag- nrum tooj liab lossis hlau vaj tse thaum ua kom tag nrho cov kua dej tswj cov txheej txheem 100% corrosion-dawb.
E-Bike & Electric Scooter Chassis Frames
Micro-mobility manufacturers yog aggressively phasing tawm hnyav txhuas vuam. PP LGF40 tab tom hloov pauv txoj haujlwm no los ntawm kev ua kom muaj ib qho - txhaj tshuaj molding ntawm tag nrho cov scooter footboards thiab e-bike subframes. Nws cuam tshuam lub sijhawm sib dhos thiab lub tsheb txwv qhov hnyav thaum muab qhov tshwj xeeb 35 kJ / m² dynamic cuam tshuam rau kev nyab xeeb hauv nroog.
Piav qhia qhov hnyav- txo kwv yees:Thaum hloov qhov raug 2.70 g / cm³ txhuas lub twj tso kua mis vaj tsev nrog PP LGF40 (1.22 g / cm³), qhov theoretical tivthaiv loj txo yog kwv yees li 54%. Qhov tseeb engineering tshwm sim los tswj cov qauv tsim kho tshiab thiab phab ntsa thickness optimization.
Tshawb nrhiav Cov Qib PP LGF Cov Qib
LFT-G muaj kev qhia dav dav ntawm cov qib polypropylene reinforcement. Xaiv cov qib zoo raws li koj qhov tshwj xeeb nruj, viscosity, thiab qhov cuam tshuam.

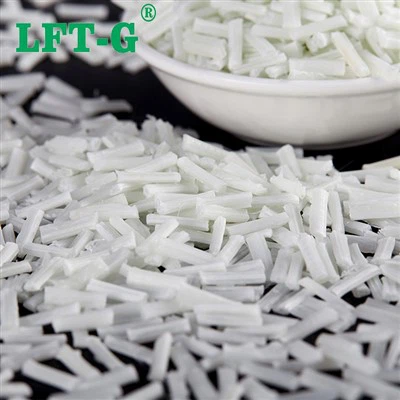

PP LGF 30
30% fiber ntau loading muab ultra-tsis tshua muaj ceev thiab siab yooj rau huab hwm coj- kev lag luam cov qauv siv.
Saib Qib →PP LGF40
Qhov zoo tshaj plaws 40% sib npaug ntawm cov txheej txheem rigidity thiab complex nyias -phab ntsa txhaj flowability.
Qib tam sim noPP LGF50
Qhov siab tshaj plaws 50% kev txhawb nqa engineered rau qhov kawg load-cov kabmob, hnyav- lub luag haujlwm hloov hlau.
Saib Qib →
Thov LGF40 Kev sim kuaj sim & nqe lus
Ua tiav qhov sib npaug zoo tshaj plaws ntawm cov qauv nruj thiab kev txhaj tshuaj flowability. Hu rau LFT-G®engineering department hnub no los thov koj 25KG sim coj mus kuaj thiab tau txais ncaj qha Hoobkas nqi.
