LFT-G®PP GF20 (CPP-NG02): Dimensional Stability nrog 20% Ntev iav Fiber
- Zero Warpage Solution:Ntev fiber ntau stabilizes loj qhov chaw, daws qhov shrinkage teeb meem ntawm tus qauv PP GF20.
- High Impact Toughness:10-12mm fiber ntau ntev txuas hniav tawg, tiv thaiv kev puas tsuaj loj thaum muaj kev cuam tshuam.
- Lightweight Champion:Qhov ceev ntawm ~ 1.04 g / cm³ ua rau nws 15% sib zog dua Nylon / ABS.
- Tus nqi -zoo:Qhov sib npaug zoo tshaj ntawm kev ua tau zoo thiab tus nqi rau siab - ntim tsheb thiab khoom siv.
Scenario: "Qhov Loj" Warpage teeb meem
Feature-Advantage-Kev Pab:LFT-G®CPP-NG02 siv 20% Ntev iav Fiber reinforcement qauv uas tsim ib qho kev sib txuas hauv pob txha hauv cov polypropylene matrix. Cov qauv tshwj xeeb no txwv tsis pub anisotropic shrinkage thaum lub caij txias, muab qhov zoo sib xws ntawm luv fiber ntau PP GF20 uas nyhav rau warp thiab hneev rau hauv cov khoom loj, tiaj tus. Qhov txiaj ntsig ncaj qha rau koj cov kab ntau lawm yog lub peev xwm los pwm loj loj lub qhov rooj vaj huam sib luag lossis cov khoom vaj khoom tsev nrog qhov tseeb qhov tseeb, txo cov nqi seem los ntawm kev deformation thiab tshem tawm qhov xav tau ntawm cov khoom kim heev - pwm fixturing.
Daim duab 1: LGF20 tswj kev tiaj tus hauv thaj chaw loj.
Kev Ua Tau Zoo: Kev cuam tshuam los ntawm kev siv nyiaj txiag
Feature-Advantage-Kev Pab:Peb cov txheej txheem pultrusion ua kom ntseeg tau tias qhov ntev ntawm fiber ntau hauv cov pellet nyob ntawm 10-12mm, piv rau<1mm length found in standard PP GF20. This extended fiber length acts like a net that bridges micro-cracks upon impact, dissipating energy throughout the part rather than allowing it to shatter. For manufacturers, this means delivering a safer, more durable product that passes rigorous drop tests and crash simulations, all while maintaining the low material cost of a polypropylene-based solution.

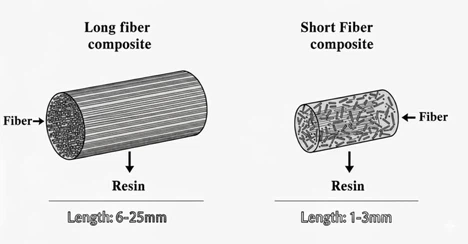

Daim duab 2: Ntev fibers network tiv thaiv kev tawg raws li kev cuam tshuam.
Technical Data Sheet (Model: LFT-G®CPP -NG02)
| Khoom | Test Standard | Chav tsev | Tus nqi |
|---|---|---|---|
| Base Resin | - | - | Polypropylene (PP) |
| Cov ntsiab lus Fiber | TS EN ISO 1172 | % | 20% Ntev iav Fiber |
| Qhov ntom | TS EN ISO 1183 | g/cm³ | 1.04 |
| Tensile zog | TS EN ISO 527 | MPa | 108 - 118 |
| Tensile Modulus | TS EN ISO 527 | GPa | 5.5 - 5.9 |
| Flexural zog | ISO 178 | MPa | 134 - 138 |
| Notched Impact Strength | TS EN ISO 179 | kJ/m² | 32 - 36 |
| HDT (1.80 MPa) | ISO 75 | degree | 156 |
Case Study: Ntxuav Tshuab Nruas Kab laug sab
Qhov teeb meem
Ib lub tuam txhab tsim khoom siv hauv tsev tau siv tuag- nrum txhuas rau lub tshuab ntxhua khaub ncaws nruas kab laug sab (lub caj npab txhawb nqa tom qab lub nruas). Aluminium qhov chaw raug kev txom nyem los ntawm corrosion vim detergents thiab dej, ua rau tsis ua hauj lwm tom qab 3-5 xyoos.
LFT-G®Kev daws
LFT-G®CPP-20% LGF (NG02)tau muab coj los siv. Lub 20% ntev iav fiber ntau muab lub zog txaus qaug zog los tswj lub siab RPM tig mus. Tsis zoo li cov hlau, PP muaj kev tiv thaiv zoo rau detergent corrosion. Qhov hloov pauv tau txo qhov hnyav los ntawm 40% thiab tag nrho cov nqi tsim khoom los ntawm 30% los ntawm kev tshem tawm cov machining thiab tiv thaiv- txheej txheej txheej txheej.
Daim ntawv thov: Lub teeb yuag & txo nqi
Cov neeg tseem nug (Google PAA)
Q: Qhov txawv ntawm PP GF20 thiab PP LGF20 yog dab tsi?
A: Impact thiab Warpage.Ob leeg muaj 20% iav, tab sis LGF20 (Long iav Fiber) muaj fibers 10x ntev dua. Qhov no tiv thaiv ib feem ntawm warping thaum lub sij hawm txias thiab ua rau muaj kev cuam tshuam lub zog (toughness) piv rau brittle luv fiber GF20.
Q: Puas yog LFT-G® PP GF20 haum rau siv sab nraum zoov?
A: Yog, nrog UV stabilization.Polypropylene xav tau UV additives rau sab nraum zoov raug. Peb tuaj yeem hloov kho qib NG02 nrog UV stabilizers (f1 rating) rau cov tsheb sab nrauv xws li sab iav vaj tse.
Q: Kuv puas tuaj yeem pleev xim qhov chaw ua los ntawm PP LGF20?
A: PP muaj lub zog nto qis, yog li nws feem ntau yuav tsum tau kho saum npoo (nplaim taws lossis ntshav) ua ntej pleev xim. Txawm li cas los xij, LFT-G® LGF20 muab lub ntsej muag du heev rau fiber ntau- cov khoom siv ntxiv, ua kom yooj yim dua kom ua tiav Chav Kawm-A nto.
Pib Koj Txoj Haujlwm Teeb Meem
Tiv tauj peb rau daim ntawv teev cov ntaub ntawv, cov qauv, thiab kev txhawb nqa ntawm cov fiber ntau molding ntev.
