Lft-g®LFT-G CPP-LGF40YD: kev cuam tshuam ntau PP LGF40 rau cov dej twj tso kua mis lub cev
Kev ua tau zoo heev, teeb yuag, cov khoom siv hluav taws xob zoo tshaj plaws rau cov dej twj

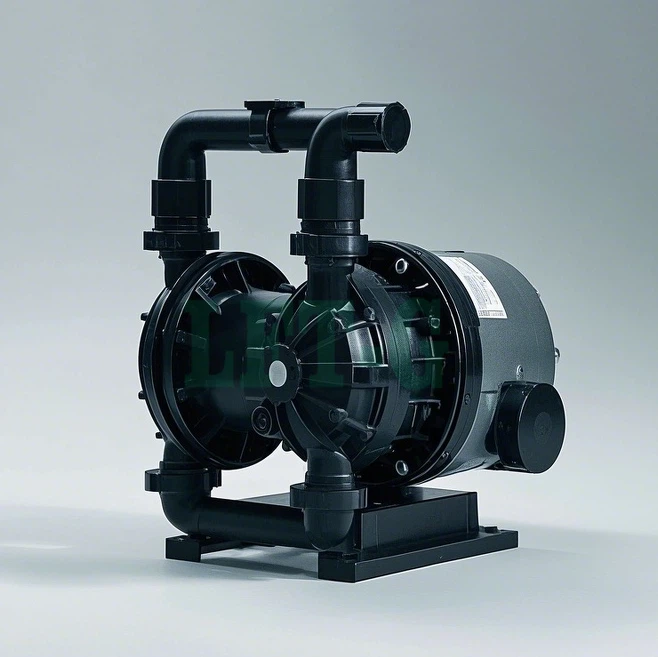

Lub taub dej twj tso kua mis yog ib qho tseem ceeb heev hauv ntau yam kua hloov lub tshuab, los ntawm automotive txias rau kev siv tshuab. Nws xav tau cov khoom siv muaj peev xwm nrog kev lag luam sab hauv siab, nce qhov kub thiab txias, thiab muaj peev xwm cuam tshuam.Lft-g®CPP-LGF40YD, ib qho tshwj xeeb 40% ntev iav fiber ntau txhawb polypropylene (pp lgf40), tawm raws li kev daws teeb meem rau cov ntawv thov no. Los ntawm kev sib xyaw ua ke cov iav ntev ntev rau hauv kev ua tau zoo polypropylene matrix, lft-g®CPP-LGF40YD ua tiav qhov sib npaug zoo dua ntawm lub zog, txhav, thiab tej yam cuam tshuam tsis zoo. Tshwj xeeb, cov qib no tau khav lub zog siab ntawm ** 48 KJ \/ M² \/ M² **, kom muaj kev tiv thaiv kev tiv thaiv sab nraud lossis sab nraud. Tsis tas li ntawd, PP LGF40 muaj kev tiv thaiv zoo heev rau cov dej kub thiab cov thawv txias, qhov tseem ceeb rau kev ua tau zoo hauv cov kua siv tshuab. Nws lub teeb yuag sib piv rau cov khoom siv tsoos hlau kuj tseem ua rau kev txhim kho kev ua haujlwm thiab txo qhov hnyav tag nrho. Lft-g®CPP-LGF40YD yog engineed rau lub sij hawm ntev divability thiab seem ruaj khov nyob rau hauv ib puag ncig kev ua haujlwm nyuaj.
Qhov tseem ceeb ntawm LFT-G®CPP-LGF40YD Rau Cov Dej Tso Kua Mis
- Kev cuam tshuam tshwj xeeb cuam tshuam:Nrog lub zog tseem ceeb ntawm ** 48 KJ \/ M² **, LFT-G®CPP-LGF40YD muab kev tiv thaiv zoo thiab kev tiv thaiv tawm tsam kev poob siab lossis kev cuam tshuam.
- Lub zog siab thiab nruj:Muaj cov qauv kev ntseeg ruaj khov los tiv thaiv cov kua hauv sab hauv thiab sab nraud thauj khoom, kom ntseeg tau tias muaj peev xwm txhim khu kev qha.
- Zoo heev rau cov dej kub thiab txias txias:Tsim kom ua kom muaj kev ntseeg tau nrog cov kua dej kub feem ntau pom hauv Automotive thiab muaj kaw tshuab.
- Lub Hnav Tsho:Kev pab rau qhov hnyav hnyav muab piv rau cov tsoos hlau tsoos tsho, pab txhawb kom txhim kho kev ua haujlwm zoo.
- Zoo seem stability:Saib xyuas cov duab zoo thiab kev thev taus zoo nyob rau hauv txawv txav kub thiab kev ntsuas kub, tseem ceeb rau cov mos ua tau thiab sib khi.
- Corrosion Kuj:Tsis zoo li hlau, lft-g®CPP-LGF40YD yog inherently resistant rau corrosion los ntawm cov kua, txuas lub neej ntawm lub cev lub cev.
- Tsim qauv tsim:Tso cai rau kev tsim cov nyom geometries thiab cov nta ua ke, ua kom haum cov kua mis tsim thiab muaj feem txo ib feem suav.
Los ntawm kev xaiv ** litft-g®CPP-LGF40YD ** Rau koj cov dej twj tso kua mis cov khoom siv, koj tab tom xaiv cov khoom uas tau xa cov khoom siv zoo tshaj plaws ntawm lub zog, durability, thiab kua dej tsis taus. Qhov kev cuam tshuam loj no PP LGF40 gradeildrers tuam ntxhab los tsim sib dua, ntau dua, thiab ntau tus neeg txhim kho kom dav rau ntau cov ntawv thov. Tshawb nrhiav txoj kev muaj peev xwm thiab tus khub nrog peb ua rau engineer rau cov tiam tom ntej ntawm kev ua tau zoo twj tso kua mis lub cev.
Rau cov ntaub ntawv ntau ntxiv, thov saib rau covkev qhia tshwj xeebhauv qab, lossis
Hu rau peb cov kws tshaj lij rau cov taub dej Lub Cev Khoom Siv Khoom Siv
Lft-g® LFT-G CPP-LGF40YD (PP LGF40) cov ntaub ntawv cov ntaub ntawv rau lub cev tso kua mis lub cev
Cov ntaub ntawv no muab cov ntaub ntawv ua haujlwm rauLft-g®CPP-LGF40YD, ib qho tshwj xeeb 40% ntev iav fiber ntau txhawb polypropylene (pp lgf40) cov khoom siv tshwj xeeb rau cov ntawv thov zoo li cov khoom siv tso kua dej zoo li lub cev tso kua mis. Cov ntaub ntawv nthuav tawm ntawm no suav nrog cov yam ntxwv tshwj xeeb ntawm qib no thiab cov kev tsim txiaj tau txais los ntawm cov khoom siv thoob ntiaj teb thiab cov qauv. Thov saib cov ntaub ntawv tshwj xeeb ntawm koj qhov kev pab cuam rau cov khoom siv LFT cov nqi.
Cov Khoom Siv Neeg Kho Tshuab
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Lub zog tensile | 120-136 | MPa | Iso 527-1 |
| Tensile modulus | 7000-9000 | MPa | Iso 527-1 |
| Elongation thaum so | 1.8-3.0 | % | Iso 527-1 |
| Lub zog flexural | 178-198 | MPa | Iso 178 |
| FLEXURAL Modulus | 6000-8000 | MPa | Iso 178 |
| Nonched izod cuam tshuam lub zog (+23 degree) | 48 | KJ \/ M² | ISO 180 \/ 1A |
| Nonched izod cuam tshuam lub zog (-30 degree) | ~40-45 | KJ \/ M² | ISO 180 \/ 1A |
| Qaug zog dag zog (ntawm 106mus ncig) | 50-60 | MPa | Raws li kev sim sab hauv |
Thermal Khoom
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Melting kub | 210-250 | tiv kis | ISO 11357 |
|
Thaum tshav kub kub deflection kub (HDT \/ A, 1.8 MPA) |
150-160 | tiv kis | Iso 75-1 |
| Coefficient ntawm linear thermal expansion | 4-6 | x 10-5/K | ISO 11359 |
Lwm cov khoom
| Ntiag tug | Tus nqi | Ib yam | Kuaj Tus Qauv |
|---|---|---|---|
| Ceev | 1.10-1.20 | g \/ cm³ | ISO 1183 |
| Flammability (UL 94) | HB lossis V -2 (nyob ntawm qib) | - | UL 94 |
| Kev nqus dej noo (24 teev) | <0.05 | % | ISO 62 |
| Shrinkage tus nqi (pwm shrinkage) | 0.5-1.0 | % | ASTM D -955 |
Kev Siv Tshuaj Tiv Thaiv (Raug)
Lft-g® CPP-LGF40YD Cov khoom pov thawj pom zoo tsis kam rau cov tshuaj hauv qab no cuam tshuam rau cov dej tso kua mis:
- Dej kub - zoo heev
- Glycol-raws li txias - zoo heev
- Diluted acids - zoo
- Diluted alkalies - zoo
- Cov tshuaj tiv thaiv kev daws teeb meem - zoo heev
Cov ntaub ntawv ua (raug)
Cov kev pom zoo ua cov haujlwm rau LFT-G® CPP-LGF40YD Kev txhaj tshuaj molding ntawm dej tso kua dej lub cev:
- MlT kub: 200-240 degree
- Pwm kub: {30-60 degree
- Kev Txhaj Tshuaj Ceev: Nruab Nrab rau Siab (kom ntseeg tau tias qhov kev faib tawm zoo thiab ib nrab sau)
- Tuav siab: optimized los txo warpage thiab kom siab siab tiv thaiv
Cov Lus Qhia thiab Cov Ntaub Ntawv Ntxiv:
Cov ntaub ntawv tau los:Cov ntaub ntawv no tau muab tso ua ke raws li cov nuj nqis rau kev tsim khoom thoob ntiaj teb thiab cov qauv kev cuam tshuam rau kev cuam tshuam ntau lub zog ntawm LFT-G®CPP-LGF40YD (48 KJ \/ M² ntawm +23 degree). Kev qaug zog yog raws kev sim sab hauv.Lft-g® CPP-LGF40YD tau tshwj xeeb engineered los muab tshuaj lom neeg tsis kam, zoo heev rau cov roj cua txias, thiab cov khoom siv zoo rau cov kua dej hauv kev thov ua kua.Thov sab laj txog cov ntaub ntawv ua raws cai uas muaj feem xyuam rau cov twj tso kua mis thiab cov kua tswj cov kua. Rau cov ntaub ntawv qhia meej thiab cov ntaub ntawv tshwj xeeb rau koj cov programme, thov sab laj Datasheet muab los ntawmPeb cov khoom siv.
Download ua tiav LFT cov ntaub ntawv PDF
