LFT-G® LGF40-PP-LFT NG04 Natural Grade Composite
40% Ntev iav Fiber reinforced Polypropylene Homo-PP LGF40 Composite

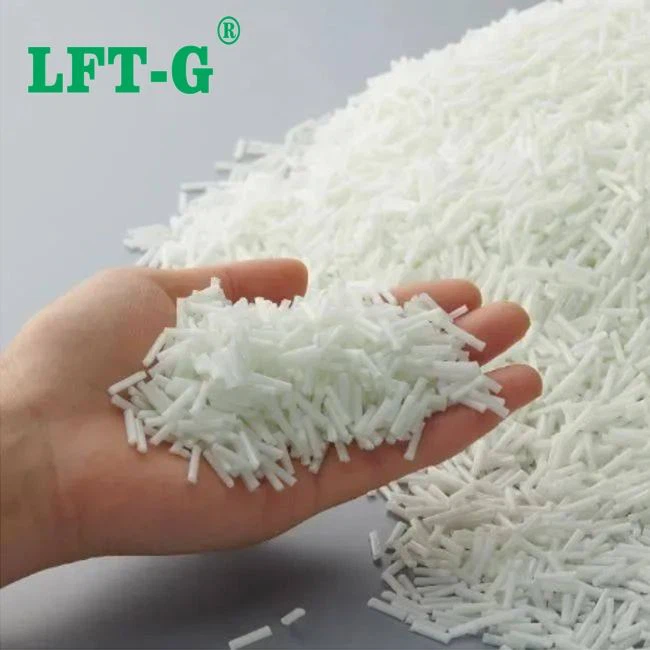

Khoom npe: ● LFT-G® Homo-PP-LGF40 Composite Plastic Granules
Khoom qauv: ● LFT-G® HPP-NA-NG04
Resin hom: ● Homo-polymer, Polypropylene
Fiber hom: ● Ntev iav Fiber
Cov ntsiab lus fiber ntau: ● 40%
Xim: ● dub, xim xim
Cov khoom siv: ● Txhaj molding, zoo mechanical zog, siab zog engineer yas composite/compounds FOR Inject auto parts, home appliance parts, sport parts.
LFT-G® PP LGF40yog 40% ntev iav fiber reinforced Polypropylene (PP) Homo-polymer thermoplastic composite khoom.LFT-G® PP LGF40% khoom tsim siv cov txheej txheem pultrusion uas yaj impregnates cov fiber ntau nrog cov matrix resin kom ua tau zoo.Long iav fibers muab lub zog siab. thiab nruj, zoo tsis kam mus rau tej yam thiab qaug zog, thiab lwm yam. ob peb qhov zoo thaum siv los ua cov khoom siv ntxiv hauv cov khoom sib xyaw.The mechanical Cov khoom ntawm cov khoom sib xyaw no tso cai rau nws siv ntau yam kev siv, ua lwm txoj hauv kev hlau rau qhov hnyav thiab txo nqi lossis lwm yam khoom siv engineering.
LFT-G® PP LGF40-NG04(TDS) Daim Ntawv Teev Npe Kev Kawm Txuj Ci Ntuj
Khoom yam ntxwv
| Lub cev | Yam ntxwv yam ntxwv | Kev xeem Standard | ||
|
Specific Gravity/Density |
1.21 g / cm³ |
ASTM D -792 |
||
|
Molding Shrinkage |
0.10 - 0.30 % |
ASTM D -955 (1/8 nyob rau hauv (3.2 mm) seem) |
||
|
Neeg kho tshuab |
Yam ntxwv yam ntxwv |
Kev xeem Standard |
||
|
Tensile zog |
135 MPa 133 MPa rau |
TS EN ISO 527 ASTM D -638 |
||
|
Tensile Modulus |
8914mpa ua 8893mpa ua |
ISO: 527 ASTM D -638 |
||
|
Tensile Elongation |
1.8- 2.6% 1.8- 2.6% |
ISO: 527 ASTM D -638 |
||
|
Flexural zog |
189 MPa ua 186 MPa ua |
GB/T 9341 ASTM D -790 |
||
|
Flexural Modulus |
8785mpa ua 8693 MPa |
GB/T 9341 ASTM D -790 |
||
|
Notched Izod cuam tshuam |
38 KJ / m2 309 J/m |
ISO: 180 ASTM D -256 |
||
|
Notched Charpy Impact |
35 KJ / m2 |
ISO: 179 |
||
|
|
Email:candyhu@lfrtplastic.com |
|||
Rev: 13/03/2023
Cov khoom siv LFT & LFRT, ntev fiber ntau reinforced thermoplastic, yog ib qho ntawm engineered reinforced composite. Fiber ntev yog 5-25 mm.

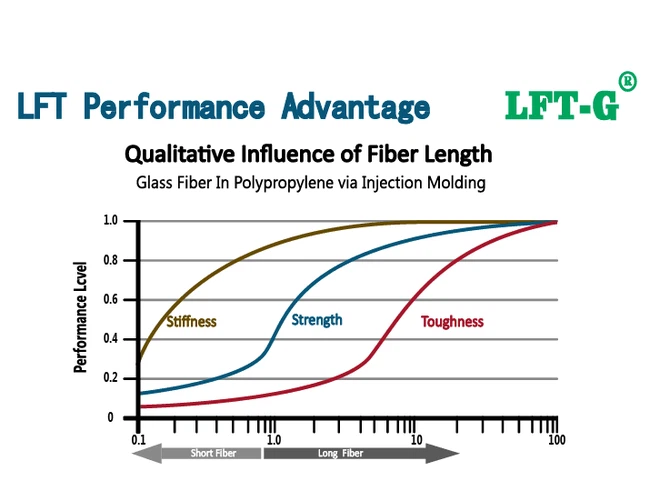

Yog vim li cas yog qhov ntev fiber ntau yog nyiam dua luv fiber ntau vim nws muaj zog dua, nruj, thiab cuam tshuam tsis kam. Cov fibers ntev kuj muab kev ruaj ntseg zoo dua qub thiab nkag mus ua haujlwm.Long fiber ntau thermoplastic tuaj yeem ua tiav siv kev txhaj tshuaj molding lossis compression molding, tso cai rau tsim kom yooj yim dua thiab ntau lawm voj voog.
Vim li cas cov khoom siv fiber ntau ntev dua cov khoom siv dag zog dua li cov khoom siv fiber ntau luv luv?Yog vim li cas, ntev fibers nyob rau hauv LFT-G® LFT-PP composites tsim ib tug network skeleton nyob rau hauv ib tug tej yam kev taw qhia, thiab ntev fibers network skeleton muaj lub luag hauj lwm zoo nyob rau hauv absorbing kev ntxhov siab thiab cuam tshuam los ntawm sab nraud, uas tsis tuaj yeem ua los ntawm luv luv. fiber ntau.
