LFT-G® PP LGF50-C|Qhov kawg Unbreakable PP GF50
LFT-G® 50% Ntev iav fiber ntau PP (Copo)
LFT-G®Tom ntej: PP LGF50-NG05Cyog cov lus teb meej rau cov engineers nrhiav qhov nruj ntawm "PP GF50" yam tsis muaj qhov tsis txaus ntseeg: brittleness. TxujPIB GF50(luv fiber ntau) tsis muaj npe nrov thiab tsis muaj kev puas tsuaj rau kev cuam tshuam, tshwj xeeb tshaj yog thaum txias. Cov khoom no yog qhov kawg upgrade, combining ib tug loj heev50% iav fiber ntau (LFRT)load nrog siab - cuam tshuamCopolymer PPmatrix.
Qhov tshwm sim yog tsis muaj -kev sib koom ua ke. Qhov 50%iav fiber ntau ntevLub cev pob txha muab hlau-zoo li txhav thiab nkag mus, thaum lub hauv paus copolymer ua kom qhov chaw nyob ruaj khov thiab nqus tau lub zog loj, txawm tias nyob rau hauv arctic tej yam kev mob. Nws yog engineered rau qhov tseeb structural hlau hloov nyob rau hauv lub harshest ib puag ncig.
- √ Qhov kawg "Stiff-Tough" Balance:
- √ Ib puag ncig zoo Durability:
- √ Cov qauv hlau hloov:
- Qhov zoo tshaj plaws rau kev hloov hnyav, corrosion-mob tuag- nrum txhuas hauv siab- kev vibration, siab - cuam tshuam cov khoom (piv txwv li, atshuab ntxhua khaub ncaws).
-
Yam khoom yam khoom
Cov txiaj ntsig hauv qab no yog cov ntaub ntawv raug rau LFT-G®PP LGF50 -NG05C (natural copolymer qib) thiab yog rau siv xwb.Thov hu rau peb rau Daim Ntawv Teev Npe Cov Ntaub Ntawv (TDS).
Mechanical Properties
| Khoom |
Txoj Kev Xeem |
Tus nqi |
| Tensile Modulus |
TS EN ISO 527 |
10,500 MPa |
| Tensile zog |
TS EN ISO 527 |
155 MPa |
| Tensile Strain ntawm Break |
TS EN ISO 527 |
2.5 % |
| Flexural Modulus |
ISO 178 |
1,0800 MPa |
| Notched Izod cuam tshuam (23 degree) |
ISO 180 / A |
PEB 54 kJ/m² |
| Notched Izod cuam tshuam (-30 degree) |
ISO 180 / A |
28 kJ/m² |
Thermal & Physical Properties
| Khoom |
Txoj Kev Xeem |
Tus nqi |
| Qhov ntom |
TS EN ISO 1183 |
1.32 g / cm³ |
| HDT/A (1.8 MPa) |
ISO 75 |
159 degree |
| HDT / C (8.0 MPa) |
ISO 75 |
140 degree |
| Melting kub |
ISO 11357 Kev Tswj Xyuas Kev Lag Luam |
~ 163 degree |
| Pwm Shrinkage (Flow) |
TS EN ISO 294-4 |
0.1 - 0.3 % |
Cov ntaub ntawv ua haujlwm
Cov txiaj ntsig hauv qab no yog cov lus pom zoo. Peb pom zoo kom desiccant / cua tshuab ziab khaub ncaws (cov dej noo hauv qab 0.1%).
Txhawm rau txo qis fiber ntau tawg thiab ua kom pom kev ua tau zoo, qhov qis - compression, dav - lub hom phiaj ntsia hlau yog pom zoo.
| Parameter |
Kev pom zoo |
| Qhuav kub |
80 - 100 degree |
| Lub Sijhawm Qhuav |
2 - 4 teev |
| Melt kub (Nozzle ③) |
230 - 260 degree |
| Pwm Kub (Zone ②) |
40 - 80 degree |
| Rov Qab Siab |
Tsawg (kom txo qis fiber ntau puas) |
Cov ntawv thov rau PP LGF50 Copolymer
Qhov tawv tawv thiab tawv ntawm LFT-G® PP LGF50-C ua rau nws yog qib hlau hloov pauv rau cov ntawv thov xav tau tshaj plaws.
- ● Automotive Bumper Beams
- ● Cov Khoom Siv Hluav Taws Xob (EV)
- ● Snowmobile Chassis Cheebtsam
- ● Cov Khoom Siv Hluav Taws Xob Mining
- ● Heavy Duty Pallets (Cold Storage)
- ● Tshuab ntxhua khaub ncaws
- ● Tub Rog & Kev Tiv Thaiv Case
- ● Muaj Ntxuam Hniav (loj)
- ● Agricultural Machinery Panels
- ● Pump Housings (Hloov Siab)
Case Study: Mining Equipment Structural Housing
Teeb meem
Ib lub chaw tsim khoom ntawm mining sensors xav tau lub tsev nyob uas tuaj yeem ntsia tau rau ntawm cov khoom siv vibration hnyav. Cov tuag uas twb muaj lawm- nrum txhuas vaj tse yog hnyav, kim, thiab nws cov ntsaws ruaj ruaj tsis ua hauj lwm vim kev co. Nws kuj tau tawg los ntawm pob zeb cuam tshuam hauv sub-zero mine shafts.
Kev daws
LFT-G®PP LGF50-C tau xaiv. Qhov 50%iav fiber ntau ntev(LFRT) qauv muab qhov nruj nruj uas xav tau los tswj qhov kev ruaj ntseg thiab tiv thaiv cov khoom siv hluav taws xob. CovCopolymer PPlub hauv paus nqus tau qhov kev co tsis tu ncua thiab muab qhov tseem ceeb qis -kub toughness los tiv thaiv kev cuam tshuam.
Kev tshwm sim
LFT ib feem yog60% sib duatshaj qhov aluminium. Kev ntsuam xyuas teb tau pom ib500% nce hauv kev pab cuam lub neej, raws li nws tshem tawm ob qho kev vibration thiab cuam tshuam tsis ua haujlwm. Qhov no coj mus rau 70% txo qhov kev lees paub rau cov neeg siv khoom.
Cov ntawv thov rau Extreme "Stiff-Tough" LFT-PP
Tshuab ntxhua khaub ncaws Drum Part (Spider)
Qhov no yog ib qho tseem ceeb hlau - daim ntawv thov hloov. Qhov 50%iav fiber ntau ntevLub cev pob txha muab qhov kev tawm tsam hnyav uas xav tau los txhawb lub nruas thiab tiv taus ntau xyoo ntawm kev siab - nrawm nrawm. Lub hauv paus PP copolymer muab 100% kev tiv thaiv rau detergent corrosion, ib qho tsis ua hauj lwm taw tes rau tuag- nrum txhuas.
Automotive Bumper Beams
Ib qho tseem ceeb ntawm kev nyab xeeb qhov twg LFT PP LGF50-C excels. Nws muab lub siab tawv (los ntawm 50%LFRT) tswj kev sib tsoo quab yuam thiab kev cuam tshuam siab (los ntawmCopolymer PP) kom nqus tau lub zog yam tsis muaj kev tawg, dhau kev nruj qis - ntsuas kub sib tsoo.

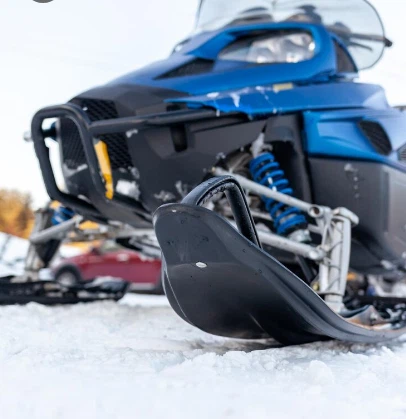

Snowmobile Structure Cheebtsam
Qhov kawg xeem ntawm qis-kub toughness. Cov khoom siv no yog siv rau lub chassis thiab ncua kev kawm ntawv uas yuav tsum tau tiv taus qhov kev co tsis tu ncua thiab kev cuam tshuam loj heev los ntawm pob zeb thiab dej khov hauv sub-zero tej yam kev mob, hloov hnyav dua, tsis ua haujlwm- cov hlau tsis zoo.
Cov lus nug tseem ceeb teb
1. Dab tsi yog qhov txiaj ntsig ntawm 50% Copolymer (C) vs 50% Homopolymer (H) qib?
A: Qhov kev xaiv yog hais txog "Tiffness vs. Survival." Homopolymer (H) qib muaj qhov siab tshaj plaws nruj, tab sis nws yog nkig ntau dua. Qib Copolymer (C) no khaws cia txog 90-95% ntawm qhov tawv ntawd tab sis ntxiv 3-4 npaug ntawm qhov kub thiab txias cuam tshuam lub zog. Rau qhov chaw nyob rau hauv ib puag ncig uas tsis paub txog (xws li tsheb, sab nraum zoov, lossis khoom siv), qib Copolymer no yog qhov kev xaiv zoo tshaj, kev ntseeg siab dua.
2. Cov khoom no puas tuaj yeem hloov cov hlau "Nruas Tshuab Nruas"?
A: Yog lawm. Nws yog daim ntawv thov tseem ceeb rau qhov chaw zoo li lub nruas kab laug sab. Qhov 50%iav fiber ntau ntev(LFRT) skeleton muab qhov kev nkag siab tsis zoo los tiv thaiv ntau xyoo ntawm kev siab - nrawm nrawm. CovPPcopolymer puag muab 100% kev tiv thaiv corrosion los ntawm detergents, uas yog ib qho tsis ua hauj lwm taw tes rau tuag- nrum txhuas.
Npaj txhij rau Engineer qhov Kev Sib Tw Tom ntej?
Ua kom koj cov khoom ua tau zoo nrog qhov kawg nruj thiab toughness ntawm LFT-G®50% Ntev iav fiber ntau PP (Copo). Hu rau peb cov kws tshaj lij cov ntaub ntawv niaj hnub no los tham txog koj qhov project lossis thov cov qauv khoom siv.
