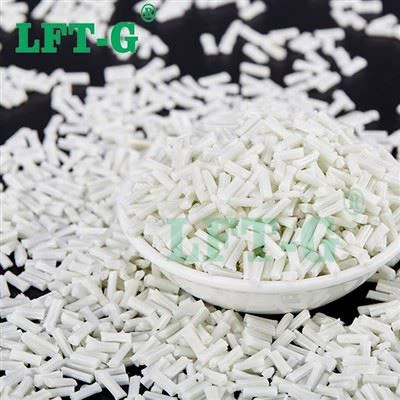

LFT-G® PA66 LGF50|Qhov kawg Hlau Hloov PA66 GF50

LFT-G® 50% Ntev iav fiber ntau nylon66 (High Strength)

LFT-G® PA66-LGF50 - Ultimate Metal Replacement Thaum engineers qhiaPA66 GF 50, lawv tab tom nrhiav rau qhov txwv tsis pub ntawm cov yas tuaj yeem ua li cas. Feem ntau, tib txoj hauv kev yog tuag-cam khwb cia txhuas. Txawm li cas los xij, tus qauv luv luv -fiber PA66 GF50 tsis muaj npe nrov thiab ua rau muaj kev kub ntxhov.LFT-G^®PA66-LGF50-NG05yog qhov tseeb structural upgrade.

Qhov no Natural Qib (NG05) composite integrates loj heev50% Ntev iav Fiberntxiv dag zog rau hauv siab - kubPolyamide 66matrix. Qhov tshwm sim yog cov khoom siv nrog lub flexural modulus tshaj 14,500 MPa thiab kub deflection kub nyob ze 250 degree. Nws muab cov txheej txheem rigidity ntawm cov hlau nrog kev tsim kev ywj pheej thiab kev txuag nyiaj (txog 50% sib dua) ntawm cov yas, tsis muaj qhov brittleness ntawm luv luv - fiber ntau compounds.

√ Rivaling Hlau tawv:Engineered los hloov tuag- nrum txhuas thiab zinc nyob rau hauv siab -load daim ntaub ntawv, tshem tawm machining nqi thiab corrosion.
√ Thaum tshav kub kub stability:Lub hauv paus PA66 tso cai rau kev ua haujlwm tsis tu ncua hauv lub cav ib puag ncig (150℃-180 degree) qhov twg PA6 lossis PP yuav poob.
√ daws Creep & Fatigue:Lub entangled ntev -fiber network locks qhov ntev nyob rau hauv qhov chaw, tiv thaiv qhov chaw los ntawm loosening los yog deforming nyob rau hauv sustained hnyav loads.

Vim li cas Hloov Hlau? (Specific zog)

Hlau muaj zog tab sis hnyav. LFT-G® PA66 LGF50 muaj lub zog zoo dua - rau- qhov hnyav piv, tso cai rau kev sib dua, tsim qauv zoo dua.

Mild Steel

Hnyav

Aluminium

Txuj

LFT PA66 LGF50

Qhov kawg Efficiency

Yam khoom yam khoom

Cov txiaj ntsig hauv qab no yog cov ntaub ntawv raug rau LFT-G^®PA66-LGF50-NG05 (Natural Grade) thiab yog rau siv xwb. Cov ntaub ntawv yog rau Dry-As-Molded (DAM) xeev.Thov hu rau peb rau Daim Ntawv Teev Npe Cov Ntaub Ntawv (TDS).

Mechanical Properties

Khoom	Txoj Kev Xeem	Tus nqi (DAM)
Tensile Modulus	TS EN ISO 527	15,800 MPa
Tensile zog	TS EN ISO 527	242 MPa rau
Tensile Strain ntawm Break	TS EN ISO 527	2.0 %
Flexural Modulus	ISO 178	14,500 MPa
Notched Izod cuam tshuam (23 degree)	ISO 180 / A	43 kJ/m²
Notched Izod cuam tshuam (-30 degree)	ISO 180 / A	18 kJ/m²

Thermal & Physical Properties

Khoom	Txoj Kev Xeem	Tus nqi
Qhov ntom	TS EN ISO 1183	1.56 g / cm³
HDT/A (1.8 MPa)	ISO 75	255 degree
HDT / C (8.0 MPa)	ISO 75	230 degree
Melting kub	ISO 11357 Kev Tswj Xyuas Kev Lag Luam	~ 262 degree
Pwm Shrinkage (Flow)	TS EN ISO 294-4	0.1 - 0.2 %

Download Ua tiav LFT^®PA66-LGF50 TDS (PDF)

Cov ntaub ntawv ua haujlwm

Cov txiaj ntsig hauv qab no yog cov lus pom zoo. Peb pom zoo kom desiccant / cua tshuab ziab khaub ncaws (cov dej noo hauv qab 0.1%).

Txhawm rau txo qis fiber ntau tawg thiab ua kom pom kev ua tau zoo, qhov qis - compression, dav - lub hom phiaj ntsia hlau yog pom zoo.

Parameter	Kev pom zoo
Qhuav kub	80 - 100 degree
Lub Sijhawm Qhuav	4 - 6 teev
Melt kub (Nozzle ③)	280 - 300 degree
Pwm Kub (Zone ②)	80 - 120 degree
Rov Qab Siab	Tsawg (kom txo qis fiber ntau puas)

Injection molding Process info

Case Study: Tsheb Turbocharger Resonator

Truck Turbocharger Resonator

Ib lub tsheb loj - cov chaw tsim khoom tsheb thauj khoom xav tau cov yeeb nkab resonator txuas nrog lub turbocharger. Lub ntsej muag200℃cua pulses, 3-bar sab hauv siab, thiab kev vibration loj ntawm lub cav.

Material Sib ntaus sib tua

PPS GF40 (tus neeg sib tw):
Nqi thiab hnyav (1.65 g / cm³). Brittle thaum sib dhos.

Txheem PA66 GF50:
Warpage teeb meem ua rau huab cua xau ntawm flange. Ua tsis tiav qhov ntsuas kub ntawm 180 degree.

Tus yeej: LFT-G^®PA66-LGF50
50% ntev fiber ntau pob txha tiv thaiv warpage (0.1% shrinkage). Tau dhau 3,000-teev kev laus thaum tshav kub kub thiab kev sim siab tawg.40% Tus Nqi Txuagvs PPS.

Core Industrial Sectors

Railway Fasteners

Hloov cam khwb cia hlau hauv rail clips. Yuav tsum tiv taus 20-tuj qag loads thiab UV raug. LFT PA66 LGF50 muaj lub zog siab compression los tuav cov hlua ruaj ntseg rau ntau xyoo.

High -Voltage Breakers

Internal thav duab rau industrial circuit breakers. Cov khoom siv lub zog dielectric siab thiab kub tsis kam (250 degree) tiv thaiv melting thaum lub sij hawm luv luv -circuit arcs.

Cav Mounts

Hloov aluminium brackets. Txhawb lub cav hnyav thaum damping vibrations. Lub 50% fiber ntau load kom lub mount tsis nkag los yog sag nyob rau hauv lub kub engine bay.

Cov neeg tseem nug (Google PAA)

1. Puas yog Nylon 66 muaj zog dua li txhuas?

A: Nyob rau hauv cov nqe lus ntawmLub zog tshwj xeeb(lub zog-rau- hnyav), yog. Thaum Aluminium 6061 muaj qhov nruj dua, LFT-G®PA66 LGF 50yog li 50% sib dua. Qhov no tso cai rau cov kws tsim qauv tsim cov khoom siv uas ua haujlwm tib yam li cov khoom siv txhuas, tab sis nrog qhov hnyav hnyav, txhim kho roj efficiency hauv tsheb.

2. Dab tsi yog qhov melting point ntawm 50% iav ntim Nylon 66?

A: Lub melting point ntawm PA66 matrix yog kwv yees li262 degree. Txawm li cas los xij, LFT-G®PA66 LGF 50Nws muaj qhov kub thiab txias Deflection (HDT) ze li ntawm250 degree(ntawm 1.8 MPa). Qhov no txhais tau hais tias cov khoom tuav nws cov txheej txheem rigidity ze rau nws melting point, tsis zoo li unreinforced plastics uas soften ntau ua ntej.

3. Dab tsi yog qhov tsis zoo ntawm PA66?

A: Lub ntsiab tsis zoo ntawm tus qauv PA66 yognoo noo nqus, uas tuaj yeem txo qhov nruj. Txawm li cas los xij, hauv peb 50% LGFqib, cov iav fiber ntau lub cev pob txha dominates cov khoom siv kho tshuab. Qhov no txo qis cov nyhuv ntawm cov dej noo, kom ntseeg tau tias qhov seem nyob ruaj khov thiab nruj txawm tias nyob hauv qhov chaw ntub dej, kov yeej cov khoom tsis muaj zog.

Npaj los Hloov Hlau?

Hloov kho mus rau qhov kawg nruj thiab kub tsis kam ntawm LFT-G^®PA66 LGF 50. Hu rau peb cov kws tshaj lij cov khoom siv niaj hnub no los tham txog koj qhov project lossis thov ua qauv.

Thov ib tug qauv Hu rau tus kws tshaj lij
