LFT-G® PA66 LGF40-TA|Lub Toughened, High-Impact Upgrade rau PA66 GF40

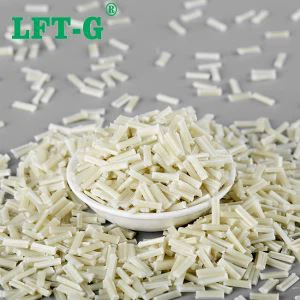

LFT-G® 40% Ntev iav fiber ntau PA66 (Toughened)

LFT-G® PA66-LGF40TA - Toughened High Heat Nylon TxujPA 66 GF40Nws nto moo rau nws cov cua kub tsis kam thiab nruj, tab sis nws muaj qhov tsis muaj zog loj: nws yog nkig. Hauv cov ntawv thov cuam tshuam, kev vibration, lossis qhov txias txias, cov qib txheem tuaj yeem tawg poob poob poob.LFT-G^®PA66-LGF40TA UAS(Toughened Qib) daws qhov kev tsis ua haujlwm tseem ceeb no.

Cov khoom no sib xyaw ua ke kom sov- tiv tausPolyamide 66matrix nrog a40% Ntev iav Fiberskeleton thiab tshwj xeeb elastomer toughening system. Qhov tshwm sim yog cov khoom sib xyaw uas khaws cov thermal stability ntawm PA66 (txog 250℃lub sij hawm luv luv) thaum muab kev txhim kho kev cuam tshuam thiab ductility. Nws hloov pauv "kev ua tsis tiav" rau hauv "yielding nyuaj," ua rau nws zoo tagnrho rau rugged industrial thiab automotive qhov chaw.

√ Lub zog muaj zog:Lub toughened matrix absorbs poob siab zog, tiv thaiv cov kab nrib pleb los ntawm propagating thaum tee los yog kev sib tsoo, txawm nyob rau ntawm -30 degree.
√ Tsis pom kev tsis pom kev:Qhov tseem ceeb txo qhov kev pheej hmoo ntawm kev ua tsis tiav ntawm cov kaum ntse ntse, lub qhov ntsia hlau, lossis cov tav uas muaj kev ntxhov siab feem ntau tawg tus qauv PA66 GF40.
√ Thermal Durability:Tsis zoo li PA6 toughened qib, PA66 lub hauv paus tso cai rau cov khoom siv no ua haujlwm nyob rau hauv qhov kub thiab txias (lub cav bays) yam tsis poob nws qhov hnyav.

Kev Nyuaj Siab -Txoj Kev Cuam Tshuam

Vim li cas "Toughened" tseem ceeb: Nws yog qhov sib txawv ntawm snapping zoo li iav thiab khoov zoo li hlau.

Brittle Snap

Txheem PA66 GF40

High Stiffness, Tsawg Elongation

Zog Absorbed

LFT-G® LGF40-TA

Balanced tawv, siab elongation

Yam Khoom Khoom Zoo (Toughened)

Cov txiaj ntsig hauv qab no yog cov ntaub ntawv raug rau LFT-G^®PA66-LGF40TA (Toughened Qib) thiab yog rau siv xwb. Cov ntaub ntawv yog rau qhuav-As-Molded (DAM) xeev.Thov hu rau peb rau Daim Ntawv Teev Npe Cov Ntaub Ntawv (TDS).

Mechanical Properties

Khoom	Txoj Kev Xeem	Tus nqi (DAM)
Tensile Modulus	TS EN ISO 527	12,600 MPa
Tensile zog	TS EN ISO 527	182 MPa rau
Tensile Strain ntawm Break	TS EN ISO 527	3.5 %
Flexural Modulus	ISO 178	10500 MPa
Notched Izod cuam tshuam (23 degree)	ISO 180 / A	47 kJ/m²
Notched Izod cuam tshuam (-30 degree)	ISO 180 / A	40 kJ/m²

Thermal & Physical Properties

Khoom	Txoj Kev Xeem	Tus nqi
Qhov ntom	TS EN ISO 1183	1.46 g / cm³
HDT/A (1.8 MPa)	ISO 75	245 degree
HDT / C (8.0 MPa)	ISO 75	205 degree
Melting kub	ISO 11357 Kev Tswj Xyuas Kev Lag Luam	~ 262 degree
Pwm Shrinkage (Flow)	TS EN ISO 294-4	0.3 - 0.5 %

Download Ua tiav LFT^®PA66-LGF40TA TDS (PDF)

Cov ntaub ntawv ua haujlwm

Cov txiaj ntsig hauv qab no yog cov lus pom zoo. Peb pom zoo kom desiccant / cua tshuab ziab khaub ncaws (cov dej noo hauv qab 0.1%).

Txhawm rau txo qis fiber ntau tawg thiab ua kom pom kev ua tau zoo, qhov qis - compression, dav - lub hom phiaj ntsia hlau yog pom zoo.

Parameter	Kev pom zoo
Qhuav kub	80 - 100 degree
Lub Sijhawm Qhuav	4 - 6 teev
Melt kub (Nozzle ③)	270 - 300 degree
Pwm Kub (Zone ②)	70 - 110 degree
Rov Qab Siab	Tsawg (kom txo qis fiber ntau puas)

Injection molding Process info

Case Study: Heavy-Lub Hwj Chim Lub Hwj Chim Gearbox

High-performance ski boot shells Heavy-Duty Power Tool Gearbox

Ib tug kws demolition rauj, vaj tse. Yuav tsum muaj cov iav kub (120 degree) thiab muaj sia nyob los ntawm scaffolding.

Destructive Test Log

Test 1: Kub Ua Haujlwm	Txheem PA6 Toughened, softened ntawm 100 degree.PA66-LGF40TA tuav ruaj ntawm 150 degree.
Kev Xeem 2: Kev Ntsuas Tso Tawm (-20 degree)	Txheem PA66 GF40 tawg.LGF40TA absorbed qhov cuam tshuam (Zero Cracks).
Test 3: Kev vibration	Dhau 500 teev ntawm siab - zaus rauj vibration.

Cov xwm txheej: PAUB rau kev tsim khoom

Dynamic Impact Zones

🎿

Kev sib tw caij ski

Ib puag ncig txias heev. Lub toughened PA66 tswj ductility ntawm -30 degree, kom ntseeg tau tias qhov kev sib khi tawm zoo yam tsis muaj snapping hauv qab load.

🚗

Chassis Skid Plates

Tiv thaiv lub tsheb hauv qab. Yuav tsum nqus qhov cuam tshuam los ntawm cov pob zeb thiab cov khib nyiab ntawm txoj kev. LGF40TA muab qhov zoo tshaj plaws sib npaug ntawm qhov tawv thiab lub zog nqus.

🔗

Industrial Safety Clips

Snap- haum buckles rau harnesses. Yuav tsum muaj siab "snap-rov qab" resilience yam tsis muaj kev qaug zog tsis ua haujlwm dhau ntau txhiab lub voj voog.

Cov neeg tseem nug (Google PAA)

1. Yuav ua li cas kom Nylon 66 cuam tshuam resistant?

A: Kev cuam tshuam tsis zoo yog nce los ntawm kev sib xyaw PA66 matrix nrog elastomer (rubber) hloov pauv. Cov txheej txheem no, hu ua "toughening," tso cai rau cov khoom kom tawm los thiab nqus lub zog thaum muaj kev cuam tshuam ntau dua li tawg.LFT-G® PA66-LGF40TAsuav nrog cov tougheners ncaj qha mus rau qhov ntev -fiber composite rau superior durability.

2. Puas yog iav ntim cov nylon tawg yooj yim?

A: Cov ntsiab lus iav siab (xws li 40% lossis 50%) ua rau cov nylon tawv heev tab sis tseem muaj zog dua (qis elongation). Standard GF40 tuaj yeem ua rau poob siab tam sim ntawd. Txawm li cas los, pebToughened (TA)qib no txo qis qhov brittleness, ua rau feem ntau tiv taus kev tawg los ntawm kev poob los yog cuam tshuam.

3. Qhov txawv ntawm PA6 thiab PA66 toughened qib yog dab tsi?

A: Ob qho tib si muaj kev cuam tshuam loj heev. Qhov txawv tseem ceeb yogkub. Toughened PA66 (zoo li LGF40TA) tswj nws cov khoom ntawm qhov kub thiab txias (vim PA66 lub siab melting point) piv rau PA6. Qhov no ua rau PA66-TA yog qhov kev xaiv zoo dua rau qhov cuam tshuam-nrhiav qhov chaw nyob ze ntawm qhov chaw sov, xws li cov cav lossis cov cuab yeej hluav taws xob.

Npaj Toughen Up?

Ua kom muaj cua sov ua haujlwm siab nrog kev cuam tshuam loj heev siv LFT-G^®PA66-LGF40TA UAS. Hu rau peb cov kws tshaj lij cov khoom siv niaj hnub no los tham txog koj qhov project lossis thov ua qauv.

Thov ib tug qauv Hu rau tus kws tshaj lij
