LFT-G® PA66 HLGF50|Qhov kawg siab tshaj -Cov Qauv Kub Kub PA66

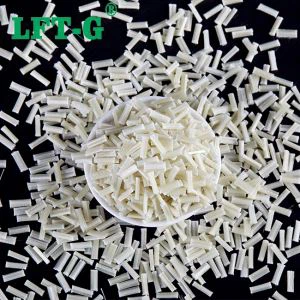

LFT-G® 50% Ntev iav fiber ntau PA66 (High Performance)

LFT-G® PA66-HLGF50 - Ultimate Heat Resistant Nylon Nyob rau hauv lub ntiaj teb no ntawm thermoplastics,PA66 GF 50feem ntau suav hais tias yog qhov txwv. Tab sis rau huab cua nyob rau hauv - - hood daim ntaub ntawv los yog siab - hydraulics siab, txheem luv luv - cov qib fiber ntau tuaj yeem ua tsis tiav vim thermal qaug zog thiab nkag mus.LFT-G^®PA66-HLGF50thawb tus ciam teb ntxiv.

Qhov Kev Ua Tau Zoo Siab (HLGF) qib no sib xyaw ua ke loj heev50% Ntev iav Fiberkev txhawb zog nrog siab -crystallinityPAB 66matrix thiab advanced coupling technology. Qhov tshwm sim yog ib qho kev sib xyaw nrog10-15% siab zogthiab superior siab -kub load bearing piv rau cov qib txheem. Nws yog qhov ze tshaj plaws polymer sib npaug rau txhuas, tsim rau qhov chaw uas yuav tsum muaj sia nyob 200℃+ spikes thiab cov khoom loj heev.

√ Qhov kawg tawv nqaij (+15%):Flexural modulus tshaj 17,500 MPa, muab nruj, tsis yog -flexing kev ua tau zoo rau precision mechanical qhov chaw.
√ Siab - Thaum tshav kub kub Endurance:Tuav lub zog tseem ceeb ntawm 180℃kev siv tas li, ua haujlwm zoo dua PA6 qib hauv thermal stability.
√ Extreme Burst Resistance:Cov entangled ntev fibers txhawb cov kab weld, tiv thaiv kev puas tsuaj loj hauv cov hlab ntsha thiab manifolds.

Lub zog ntawm 180℃(Cov Roj Kub Kub)

Thaum tshav kub kub nce, txheem plastics tsis muaj zog. LFT-G® HLGF50 tswj cov txheej txheem kev ncaj ncees ntawm cov hlau.

~ 50% Lossis

Std. PA66 GF 50

Kev ruaj ntseg siab

LFT-G® HLGF50

Aluminium

Cov khoom siv zoo (High Performance)

Cov txiaj ntsig hauv qab no yog cov ntaub ntawv raug rau LFT-G^®PA66-HLGF50 (High Performance Grade) thiab yog rau siv xwb. Cov ntaub ntawv yog rau qhuav-As-Molded (DAM) xeev.Thov hu rau peb rau Daim Ntawv Teev Npe Cov Ntaub Ntawv (TDS).

Mechanical Properties

Khoom	Txoj Kev Xeem	Tus nqi (DAM)
Tensile Modulus	TS EN ISO 527	17,500 MPa
Tensile zog	TS EN ISO 527	270 MPa
Tensile Strain ntawm Break	TS EN ISO 527	2.1 %
Flexural Modulus	ISO 178	15,200 MPa
Notched Izod cuam tshuam (23 degree)	ISO 180 / A	48 kJ/m²
Notched Izod cuam tshuam (-30 degree)	ISO 180 / A	22 kJ/m²

Thermal & Physical Properties

Khoom	Txoj Kev Xeem	Tus nqi
Qhov ntom	TS EN ISO 1183	1.56 g / cm³
HDT/A (1.8 MPa)	ISO 75	258 degree
HDT / C (8.0 MPa)	ISO 75	235 degree
Melting kub	ISO 11357 Kev Tswj Xyuas Kev Lag Luam	~ 262 degree
Pwm Shrinkage (Flow)	TS EN ISO 294-4	0.1 - 0.2 %

Download Ua tiav LFT^®PA66-HLGF50 TDS (PDF)

Cov ntaub ntawv ua haujlwm

Cov txiaj ntsig hauv qab no yog cov lus pom zoo. Peb pom zoo kom desiccant / cua tshuab ziab khaub ncaws (cov dej noo hauv qab 0.1%).

Txhawm rau txo qis fiber ntau tawg thiab ua kom pom kev ua tau zoo, qhov qis - compression, dav - lub hom phiaj ntsia hlau yog pom zoo.

Parameter	Kev pom zoo
Qhuav kub	80 - 100 degree
Lub Sijhawm Qhuav	4 - 6 teev
Melt kub (Nozzle ③)	280 - 310 degree
Pwm Kub (Zone ②)	80 - 120 degree
Rov Qab Siab	Tsawg (kom txo qis fiber ntau puas)

Injection molding Process info

Case Study: Heavy Hydraulic Lim Housing

High pressure hydraulic filter housing made from LFT PA66 HLGF50

Siv nyob rau hauv kev tsim kho machinery. Yuav tsum muaj cov roj hydraulic kub (130 degree) nrog lub siab nce mus txog 40 Bar.

Cyclic Pressure Test (0-20 Bar)

Tuag-Aluminium:
Nqi, hnyav. Machining defects ua rau xau ntawm 800,000 cycles.

Txheem PA66 GF50:
Bulged thiab ua tsis tau tejyam ntawm 250,000 cycles vim creep rupture.

LFT-G^®HLGF50 (High Performance):
Muaj sia nyob1.5 lab lub voj voog without leakage. Burst pressure >50 Bar.60% Lub teebdua li aluminium.

Powertrain Core Applications

🚗

Lub tog raj kheej taub hau npog

Hloov aluminium. Lub siab tawv ntawm HLGF50 ua kom lub gasket foob tseem nruj txawm tias tom qab xyoo ntawm lub cav cua sov.

⚙

Transmission Roj Pans

Yuav tsum tiv thaiv pob zeb cuam tshuam thiab kub kis tau tus mob. 50% fiber ntau load muab qhov tsim nyog rigidity los txhawb lub valve lub cev.

🔥

Intercooler kawg Tanks

Tuav lub siab boost siab ntawm 180 degree. HLGF50 tshem tawm qhov xav tau ntawm cov hlau ntxig thiab tiv thaiv kev zais pa.

Cov neeg tseem nug (Google PAA)

1. Qhov kub siab tshaj plaws rau PA66 GF50 yog dab tsi?

A: Lub melting point ntawm PA66 yog ~ 262 degree. Txawm li cas los xij, LFT-G®PA66 HLG 50Nws muaj qhov kub thiab txias Deflection (HDT) ntawm255 degree(ntawm 1.8 MPa). Qhov tshwj xeeb siab HDT no tso cai rau nws tuaj yeem tiv taus luv luv - lub sij hawm spikes nyob ze nws cov ntsiab lus melting thiab kev pabcuam kub ntawm 150℃-180 degree, siab dua PA6.

2. Puas yog PA66 GF50 muaj zog dua li txhuas?

A: Nyob rau hauv cov nqe lus ntawmLub zog tshwj xeeb(lub zog-rau- hnyav piv), yog. LFT-G®PA66 HLG 50 has a tensile strength of >270 MPa thiab yog 40% sib dua li txhuas. Txawm hais tias aluminium yog qhov ruaj khov hauv cov ntsiab lus tseeb, peb cov khoom sib xyaw tso cai rau txo qhov hnyav hauv cov qauv yam tsis muaj kev cuam tshuam cov khoom thauj -cov kabmob muaj peev xwm.

3. Puas yog cov av noo txo lub zog ntawm PA66?

A: Yog lawm, PA66 absorbs noo noo, uas feem ntau txo qis nruj. Txawm li cas los xij, hauv pebHLB 50qib, loj50% iav fiber ntau ntevcov ntsiab lus dominates mechanical zog. Qhov no txo qis cov nyhuv ntawm cov dej noo, kom ntseeg tau tias qhov tseem nyob ruaj khov thiab ruaj khov txawm tias nyob hauv qhov chaw ntub dej, tsis zoo li cov nylon uas tsis muaj dej.

Npaj txhij rau Engineer qhov Kev Sib Tw Tom ntej?

Ua kom koj cov khoom ua tau zoo nrog qhov kawg ntawm lub zog thiab kub tsis kam ntawm LFT-G^®PA66-HLGF50. Hu rau peb cov kws tshaj lij cov khoom siv niaj hnub no los tham txog koj qhov project lossis thov ua qauv.

Thov ib tug qauv Hu rau tus kws tshaj lij
