50% ntev iav fiber txhawb cov nylon 66 khoom
PA66 GF50 yog dab tsi?

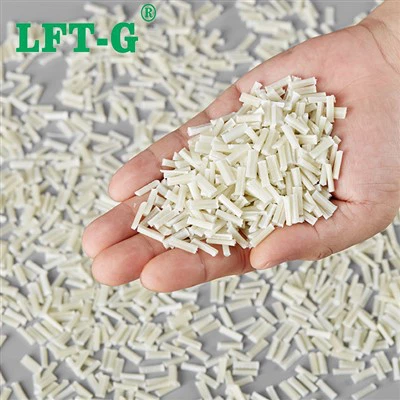

PA66 GF50 yog ib qho ultra - siab} qhov kev ua tau siab siab siv lub polyamide 66 (nylon 66) puag kub nrog ib qho 50% thauj khoom ntawm cov iav fibers. LFT - g} Cov thev naus laus zis ua tau los ntawm kev sivNtev Iav FibersTxhawm rau tsim lub zog sab hauv fiber ntau pob txha pob txha. Qhov no ua rau cov khoom siv nrog kev zam lub zog tshwj xeeb thiab txhav, ua rau nws hloov chaw ncaj qha rau cov hlau zoo li txhuas, zinc, thiab magnesium.
Qhov no yog peb lub zog pinnacle sib xyaw ua ke, engineered rau qhov tseem ceeb tshaj plaws thauj khoom - Cov ntawv thov cov kabmob. Nws muab cov khoom siv hluav taws xob heev ntawm 50% LGF nrog cov cua sov thiab tshuaj lom neeg tiv thaiv pah6, tsim cov tshuaj sib xyaw ua kom hloov tau cov qauv hlau.
Lft - g®PA66 GF50, pab hloov cov hlau ncaj qha.
Siv cov ntaub ntawv ua yeeb yam: hloov tuag -} nrum aluminium bracket
Yuav ua li casLft - g®PA66 GF50Ua hauv qhov tseeb - ntiaj teb kev lag luam sib txawv ntawm cov kev xaiv ib txwm muaj? Ntawm no yog qhov tawg:
Lft - g®Pa66 lgf50
Nyhav & efficiency: -50%(Cov kev nyab xeeb hnyav
Raug: Ib Leeg Ib Leeg(Net {- Duab puab moulding)
Kev co Damping (NVH): Zoo tshaj(Zoo dua damping)
Kev ua tau zoo nyob rau hauv tshav kub: Zoo tshaj(Siab ntseeg tau)
Tuag - Nrumin (A380)
Nyhav & efficiency: Lub hauv paus(Hnyav)
Raug: Ntau - theem(Xav tau machining)
Kev co Damping (NVH): Pluag(Siab resonance)
Kev ua tau zoo nyob rau hauv tshav kub: Zoo tshaj(Lub siab tawv heev)
Luv - fiber ntau Pa66 GF50
Nyhav & efficiency: -48%(Zoo yuag txuag nyiaj)
Raug: Ib Leeg Ib Leeg(Net {- Duab puab moulding)
Kev co Damping (NVH): Zoo(Zoo dua li hlau)
Kev ua tau zoo nyob rau hauv tshav kub: Zoo(Tab sis qis dua lub zog khaws tseg)
Kev Ua Tshwj Xeeb
Cov ntaub ntawv rau LFT - g® pa66 gf50. Raws li cov khoom siv hygroscopic, cov khoom tau muab rau ob qho tib si qhuav- moulded (dam) thiab txias (50% rh) xeev.
| Ntiag tug | Txoj kev xeem | Metric (Dam) | Metric (corn) |
|---|---|---|---|
| Ceev | ISO 1183 | 1.56 g / cm³ | 1.54 g / cm³ |
| Tensile modulus | ISO 527 | 16,000 MPa | 11,500 MPa |
| Lub zog tensile | ISO 527 | 233 MPa | 170 MPa |
| Nonched izod cuam tshuam (23 qib) | ISO 180 | 43 KJ / M² | 56 KJ / M² |
| Thaum Tshav Kub Kub Deflection Temp (1.8 MPA) | ISO 75 | 253 Qib | - |
Download tau tiav LFT - g pa66 gf50 cov ntaub ntawv ntawv pdf
Cov ntawv thov uas muaj zog yog qhov tseem ceeb
Automotive kiv cua npog cov qauv
A - Pillar / B {{1} Cov Pillar InurnestCulence, Txheej Txheem Kev Tiv Thaiv, thiab Ev Roj Teeb tiv thaiv.
Muaj & Hlau
Loj kawg - ntawm - kev tooling (} {{} Nplooj ntawv ntsuas kev lag luam machinery thav ntawv.
Aerospace & Tiv Thaiv
Load - bearing Yajr chassis, cov khoom siv tswv yim mounts, thiab lub teeb sib xyaw ua ke rau kev siv tub rog.
Cov Lus Nquag Nug
Q: Thaum twg yog Lft PA66 LGF50 cov kev xaiv kev sib cav?
A: LFF PA66 LGF50 yog qhov kev xaiv meej thaum koj daim ntawv thov yuav tsum muaj zog tshaj plaws Nws yog tshwj xeeb tsim los hloov cov qauv txheej txheem ntawm cov hlau uas ua tau tsis muaj kev pom zoo.
Q: Li cas 50% fiber ntau loading cuam tshuam thiab tsim?
A: Cov ntsiab lus muaj fiber ntau nyob hauv qhov siab - viscosity yaj nrog kev ntws tsawg. Qhov no yuav tsum ua cov cuab yeej ua kom ruaj khov thiab ua tib zoo tsim cov pwm nrog cov dav dav ntws thiab cov rooj vag loj. Peb xav kom muaj kev sib koom tes tsim qauv thiab pwm cov kev ntsuas ntsuas theem kom ntseeg tau tias txoj kev vam meej, pab pawg kws tshaj lij muab.
Sib tw hlau. Yeej nrog composite.
Koj feem ntau xav tau cov haujlwm hloov cov hlau uas xav tau peb cov khoom siv muaj peev xwm tshaj plaws. Hu rau peb pab neeg engineering kom rub lub zog ntawm LFT {} g® pa66 gf50 thiab rov txhais tau ua dab tsi hauv lub teeb txiab tsim.
