LFT-G® PA6 LGF60-NG06|Hlau-Hloov Qib PA6 GF60

LFT-G® PA6 LGF60-NG06|Kev Txhim Kho Siab Heev rau PA6 GF60

LFT-G® PA6-LGF60 - Metal Replacement Nylon Cov kws tshaj lij qhiaPA6 GF60thaum lawv xav tau yas los ua zoo li hlau. Txawm li cas los xij, tus qauv luv luv -fiber PA6 GF60 muaj qhov txwv loj: nws yog qhov txaus ntshai nkig thiab ua rau muaj kev kub ntxhov.LFT-G^®PA6-LGF60-NG06yog qhov kev siv thev naus laus zis uas ua rau 60% iav fiber ntau cov ntsiab lus siv tau rau cov qauv dynamic.

Qhov no Natural Qib (NG06) composite packs loj heev60% Ntev iav Fiberkev txhawb zog rau hauv aPolyamide 6matrix. Lub cev pob txha sib txuas ntawm cov fibers ntev daws qhov teeb meem brittleness, muab lub flexural modulus (stiffness) uas cov neeg sib tw tuag- nrum txhuas thaum tuav txaus toughness kom muaj sia nyob loads shocks. Nws yog qhov kev xaiv zoo tshaj plaws los hloov cov hlau hnyav lossis txhuas qhov chaw hauv tsheb, tsheb ciav hlau, thiab cov tshuab ua haujlwm hnyav.

√ Aluminium -Zoo li tawv:Muab lub flexural modulus mus txog 19,000 MPa, tso cai rau cov khoom nruj heev nrog xoom deflection hauv qab hnyav.
√ daws Creep & Fatigue:Tsis zoo li cov hlau uas tuaj yeem ua rau qaug zog, thiab cov qauv yas uas nkag mus, LFT PA6 LGF60 tswj qhov ntev ntawm kev ntxhov siab thiab kev co.
√ Zoo heev nto tiav:Peb cov txheej txheem LFT ua kom cov resin ntub tag nrho cov fibers, txo qhov "floating fiber" roughness feem ntau pom nyob rau hauv siab puv luv - fiber ntau.

Lub zog tshwj xeeb: ntaus hlau ntawm nws tus kheej kev ua si

Vim li cas thiaj hloov hlau? Vim tias LFT PA6 LGF60 muaj lub zog ntau dua - rau - qhov hnyav piv.

Hlau

Muaj zog tab sis hnyav

Aluminium

Txuj

LFT PA6 LGF60

Qhov kawg Specific Strength

Yam khoom yam khoom

Cov txiaj ntsig hauv qab no yog cov ntaub ntawv raug rau LFT-G^®PA6-LGF60-NG06 (Natural Grade) thiab yog rau siv xwb. Cov ntaub ntawv yog rau Dry-As-Molded (DAM) xeev.Thov hu rau peb rau Daim Ntawv Teev Npe Cov Ntaub Ntawv (TDS).

Mechanical Properties

Khoom	Txoj Kev Xeem	Tus nqi (DAM)
Tensile Modulus	TS EN ISO 527	20,500 MPa
Tensile zog	TS EN ISO 527	272 MPa ua
Tensile Strain ntawm Break	TS EN ISO 527	2.0 %
Flexural Modulus	ISO 178	15,500 MPa
Notched Izod cuam tshuam (23 degree)	ISO 180 / A	36 kJ/m²
Notched Izod cuam tshuam (-30 degree)	ISO 180 / A	21 kJ/m²

Thermal & Physical Properties

Khoom	Txoj Kev Xeem	Tus nqi
Qhov ntom	TS EN ISO 1183	1.63 g / cm³
HDT/A (1.8 MPa)	ISO 75	215 degree
HDT / C (8.0 MPa)	ISO 75	185 degree
Melting kub	ISO 11357 Kev Tswj Xyuas Kev Lag Luam	~ 220 degree
Pwm Shrinkage (Flow)	TS EN ISO 294-4	0.1 - 0.2 %

Download Ua tiav LFT^®PA6-LGF60 TDS (PDF)

Cov ntaub ntawv ua haujlwm

Cov txiaj ntsig hauv qab no yog cov lus pom zoo. Peb pom zoo kom desiccant / cua tshuab ziab khaub ncaws (cov dej noo hauv qab 0.1%).

Txhawm rau txo qis fiber ntau tawg thiab ua kom pom kev ua tau zoo, qhov qis - compression, dav - lub hom phiaj ntsia hlau yog pom zoo.

Parameter	Kev pom zoo
Qhuav kub	80 - 100 degree
Lub Sijhawm Qhuav	4 - 6 teev
Melt kub (Nozzle ③)	260 - 290 degree
Pwm Kub (Zone ②)	80 - 110 degree
Rov Qab Siab	Tsawg (kom txo qis fiber ntau puas)

Injection molding Process info

Case Study: Heavy-Lub luag haujlwm muaj Caster Core

OLD: Cast Iron Core

⚓

Qhov hnyav:3.5 kg ib
Qhov teeb meem:Hnyav, Rusted, Noisy
Tus nqi:High (yuav tsum tau machining)

TSHIAB: LFT PA6 LGF60

⚙

Qhov hnyav:1.6 kg (ntau-54%)
Qhov tshwm sim:Corrosion-dawb, Silent Rolling
Thauj khoom:Txhawb nqa 1,500kg Static Load

"LFT core dhau qhov kev sim poob qhov twg tus qauv PA6 GF60 tawg."

Extreme Load Zone Applications

🚈

Railway Fasteners

Tseem ceeb infrastructure Cheebtsam. LFT PA6 LGF60 hloov cam khwb cia hlau, withstanding loj compressive vibration ntawm hla tsheb ciav hlau tsis muaj creep los yog corrosion.

🏹

Archery Bow Risers

Yuav tsum tau nruj nruj kom tsis txhob flexing thaum lub voj voog kos. 60% fiber ntau muab cov rigidity ntawm txhuas tab sis nrog superior vibration damping rau ib tug smoother txhaj tshuaj.

⚙

Siab - Lub taub hau taub hau

Rau industrial siab washers. Lub zog tawg ntawm PA6 LGF60 yog qhov zoo tshaj plaws, muaj siab - dej siab yam tsis muaj kev qaug zog tsis ua haujlwm ntau hauv luv - fiber ntau qhov chaw.

Cov neeg tseem nug (Google PAA)

1. Puas yog Nylon 6 muaj zog dua li txhuas?

A: Raws li "Specific Strength" (lub zog- rau - hnyav piv), yog. Thaum txhuas muaj cov qauv zoo dua qub, LFT-G® PA6 LGF60 muaj cov qauv kev ua tau zoo uas tso cai rau koj los hloov cov khoom siv txhuas nrog cov khoom siv uas yog 50% sib dua, corrosion- pov thawj, thiab pheej yig dua los tsim, tsis muaj kev cuam tshuam cov load-cov kabmob muaj peev xwm.

2. Dab tsi yog qhov ceev ntawm PA6 GF60?

A: Qhov ceev ntawm LFT-G® PA6 LGF60 yog kwv yees li1.65 g / cm³. Sib piv qhov no rau txhuas (2.7 g / cm³) lossis hlau (7.8 g / cm³). Qhov sib txawv ntawm qhov sib txawv tseem ceeb no yog tus tsav tsheb tseem ceeb rau kev siv siab - iav- cov ntsiab lus nylon hauv kev siv tsheb thiab kev lag luam.

3. Koj puas tuaj yeem txhaj pwm 60% iav fiber ntau nylon?

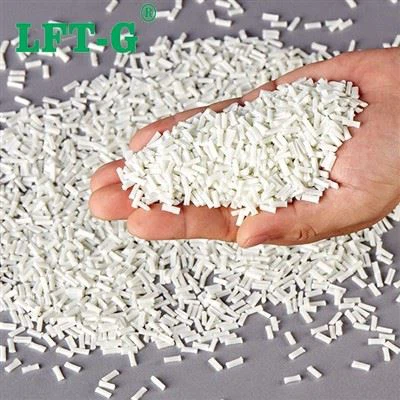

A: Yog, tab sis nws yuav tsum tau LFT tshuab. Txheem *luv fiber ntau* 60% cov tebchaw feem ntau muaj teeb meem txaus thiab ua rau tsis zoo ntawm qhov kawg ("floating fibers"). PebLFT-G® Ntev Fiberpellets yog tsim los nrog cov khoom ntws zoo heev, tso cai rau cov ntsiab lus fiber ntau yuav tsum tau molded rau hauv cov duab nyuaj nrog ib qho zoo kawg nkaus ua tiav rau cov khoom zoo li no.

Npaj txhij rau Engineer qhov Kev Sib Tw Tom ntej?

Ua kom koj cov khoom ua tau zoo nrog qhov kawg nruj ntawm LFT-G^®PA6 LGF60. Hu rau peb cov kws tshaj lij cov ntaub ntawv niaj hnub no los tham txog koj qhov project lossis thov cov qauv khoom siv.

Thov ib tug qauv Hu rau tus kws tshaj lij
