LFT Nylon6 PA6 Fiber iav Ntev Fiber Compound Rau Yas Iav

Paub meej

Khoom npe: PA6 LGF; LFT Nylon6 PA6 Fiber iav Ntev Fiber reinforced Compound Rau Yas Iav
Tshuaj sib qhia Ntev iav fiber reinforced nylon 6 daim ntawv thov tshiab: Txhim kho toughness thiab tensile rau yas iav

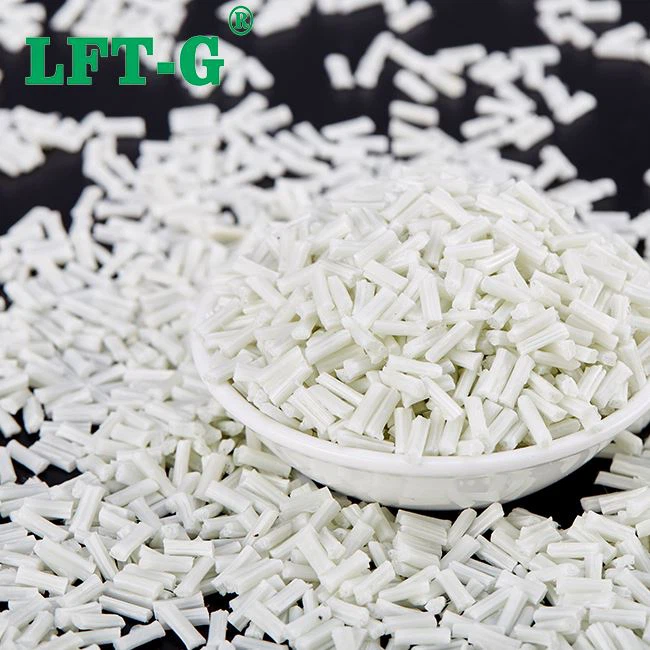

Form: granules pellets polymer Length about 10-12mm;Color:Nature and Black Contact:candyhu@lfrtplastic.com

Kev faib tawm yam khoom

Ntev iav Fiber Reinforced Polyamide 6

Share to

LFT Nylon6 PA6 Fiber iav Ntev Fiber Compound Rau Yas Iav

Khoom Description

LFT PA LGF khoomyog Polyamide resin puv ntev fiber ntau (feem ntau yog iav / carbon fiber) thermoplastic compound polymer khoom. Peb muaj cov khoom lag luam thiab muab PA6 / PA66 / PA12-LGF / LCF reinforced thermoplastic, txoj kev tsim khoom yog LFT-G txheej txheem. PA resin ntim cov khoom siv ntev ntev tuaj yeem txhim kho cov khoom siv hluav taws xob / cov khoom siv hluav taws xob zoo (xws li: kev cuam tshuam siab, siab tensile, siab qaug zog tsis kam, qis creep, lub teeb yuag thiab lwm yam kev ua tau zoo).LFT PA-LGFcov khoom siv yog ib hom kev ua haujlwm siab txhawb nqa engineering khoom.

TSIS MUAJ.	Yam khoom	Chav tsev	Yam ntxwv yam ntxwv	Kev xeem Standard
	Nylon 6 LGF60 Polyamide Reinforced Thermoplastic 60 feem pua
1	Qhov ntom	g/cm³	1.68	ASTM D -792
2	Molding Shrinkage	feem pua	0.1-0.3	ASTM D -955
3	Tensile zog	MPa	237	ASTM D -638
4	Tensile Modulus	MPa	23125	ASTM D -638
5	Tensile Elongation	feem pua	1.5	ASTM D -638
6	Flexural zog	MPa	333	ASTM D -790
7	Flexural Modulus	MPa	18864	ASTM D -790
8	Notched Izod cuam tshuam	J/m	316	ASTM D -256
9	Beam cuam tshuam lub zog	J/M		ASTM D -4812

Cov Khoom Siv Daim Ntawv Thov Rau Nws Pib Part / Yas Iav

Gears yog cov khoom tseem ceeb uas siv los xa cov lus tsa suab thiab lub zog hauv cov cuab yeej siv tshuab. Nrog rau txoj kev loj hlob sai ntawm cov tshuab tsim tshuab, kev siv cov hlau iav hauv kev tsim khoom thiab daim ntawv thov maj mam ua tsis tau raws li kev tsim kho kev lag luam niaj hnub no. Cov iav hlau yog ua tiav los ntawm kev txiav, sib tsoo thiab lwm yam txheej txheem tsim, uas raug rau kev ua haujlwm tsis raug, tus nqi siab, thiab nyuaj rau tsim thiab nruab.

Nrog rau qhov tshwm sim ntawm cov ntaub ntawv tshiab, daim ntawv thov ntawm cov iav yas tau dhau los ua ntau dua. Hauv cov khoom ua si, cov khoom siv kho mob, cov khoom siv hluav taws xob, kev tiv thaiv lub teb chaws, tub rog, aerospace thiab lwm yam kev lag luam, tuaj yeem pom hauv daim duab yas iav. Piv nrog rau cov iav hlau, cov iav yas yog lub teeb, tsis tshua muaj suab nrov, zoo hnav tsis kam, zoo rau nws tus kheej lubricating zog, tuaj yeem ua tiav thiab ntau lawm los ntawm kev siv fiber ntau ntev siv cov khoom siv high-kev txhaj tshuaj molding, kev tsim khoom thiab cov cuab yeej siv tshuab, thiab lwm yam. tsis muaj rau cov iav hlau.

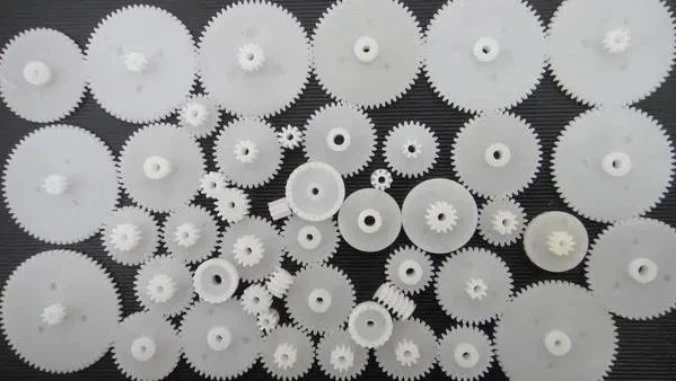

LFT PP PA LGF for plastic gear

Los ntawm qhov kev xav ntawm "yas es tsis txhob hlau", nws yog ib qho tsim nyog yuav tsum siv cov khoom tsim nyog los hloov cov hlau, txo cov khoom zoo, tab sis tsis ua rau nws lub zog tsis muaj zog, thiab tuaj yeem txhim kho nws cov corrosion kuj, dielectric zog, thiab lwm yam. tuaj yeem muab kev ua si tag nrho rau kev tsim qauv ntawm cov iav yas, nws tus kheej lubricating zog. Txhawm rau txhim kho lub zog ua haujlwm ntawm cov iav,LFT ntev-fiber nylon los yog PP polypropylene reinforced khoomnrog lub zog siab thiab thermal rwb thaiv tsev tuaj yeem siv tau -LFT PPLGF/LFT PA LGF Reinforced composite. Cov khoom siv ntawm cov iav yas yog qhov ua tau zoo dua tom qab txhaj tshuaj molding ntawm cov khoom siv fiber ntau ntev, uas tuaj yeem txhim kho lub neej kev pab cuam ntawm cov iav yas thaum lub sij hawm meshing.

long fiber filled pa application
