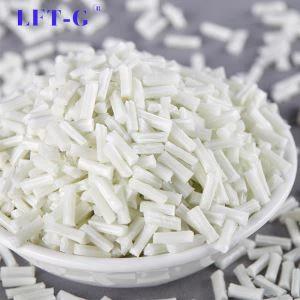

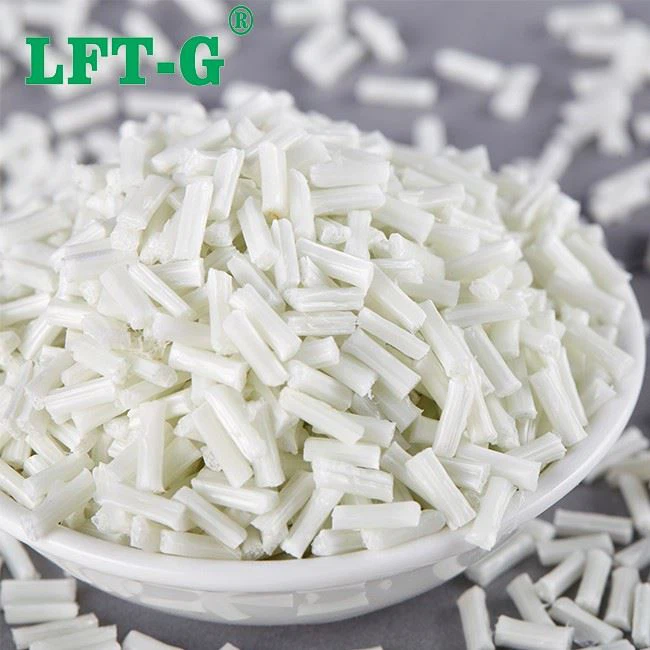

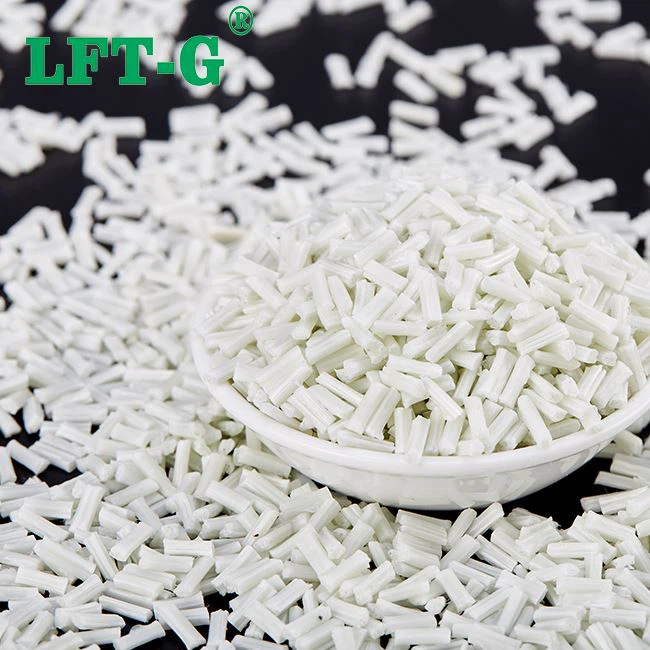

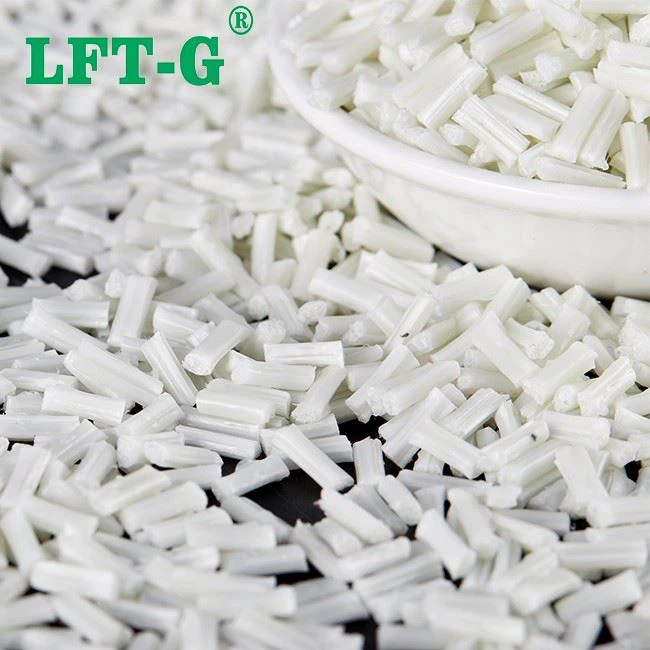

LFT LGF Sau PA6 / PA66 / PA12 / PA Reinforced Ntev Fiber Thermoplastic Compound

LFT PA LGF khoomyog Polyamide resin puv ntev fiber ntau (feem ntau yog iav / carbon fiber) thermoplastic compound polymer khoom. Peb muaj cov khoom lag luam thiab muab PA6 / PA66 / PA12-LGF / LCF reinforced thermoplastic, txoj kev tsim khoom yog LFT-G txheej txheem. PA resin ntim cov khoom siv ntev ntev tuaj yeem txhim kho cov khoom siv hluav taws xob / cov khoom siv hluav taws xob zoo (xws li: kev cuam tshuam siab, siab tensile, siab qaug zog tsis kam, qis creep, lub teeb yuag thiab lwm yam kev ua tau zoo).LFT PA-LGFcov khoom siv yog ib hom kev ua haujlwm siab txhawb nqa engineering khoom.

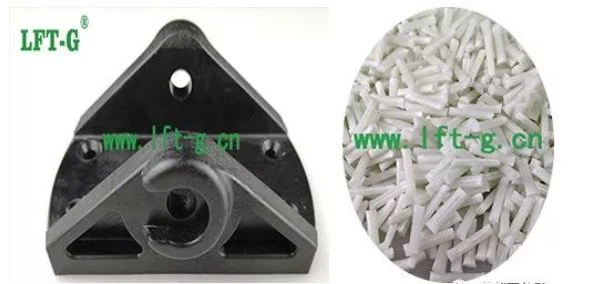

Cov Khoom Siv Daim Ntawv Thov-Kev daws teeb meem-Siv rau skiing tsheb ib feem kom txo qhov hnyav los ntawm kev hloov hlau.

Raws li ib qho ntawm cov cuab yeej ua kis las, kev siv lub tsheb caij ski ntau dua thiab nrov dua, lub tsheb caij ski yuav ntsib ntau yam kev nyuaj ntawm txoj kev daus, tsis sib xws ntawm qhov sib txawv thiab qhov siab thiab qhov hnyav ntawm kev siv cov neeg coob coob. Tsis tas li ntawd, lub tsheb caij ski hauv kev siv cov pob thiab kev vibrations, kev sib tsoo tsis tu ncua, suab nrov, kev siv lub sij hawm ntev ntawm kev qaug zog thiab lwm yam, yog lub tsheb caij ski load-bearing qhov chaw los ntsib qhov teeb meem thiab kev sib tw.

Daim ntawv thov thaj chaw rau luv iav fiber reinforced thermoplastic composites: automotive engine peripherals, sab hauv thiab sab nrauv trim qhov chaw; txhaj tshuaj molded qhov chaw rau brackets, rooj zaum qauv thiab chaw consoles, thiab lwm yam.

Daim ntawv thov thaj chaw rau ntev iav fiber reinforced thermoplastic (LFT)composites:bumpers, instrument panels, roj teeb tais, pem hauv ntej-kawg Cheebtsam, tswj lub thawv, rear flaps, suab nrov barriers, chassis npog, spare log compartments, lub rooj txhawb nqa panels, thiab lwm yam.

Cov txheej txheem LFT-G

Piv rau cov qauv luv luv iav fiber ntau siv cov thermoplastic composites, LFT thev naus laus zis nrog nws cov ntsia hlau tshwj xeeb, tuag thiab cutter tsim thiab infiltrant formulation tuaj yeem tso tawm ib daim ntawv nyob ntawm 12mm lossis ntau dua pellets nrog qhov ntev fiber ntau piv rau pellet ntev, cia cov iav fiber ntau muaj. ib lub iav fiber ntau ntev hauv cov khoom kawg.

Nrog rau qhov luv luv fiber reinforcement, tom qab peb cov txheej txheem ntawm cov ntsia hlau, qhov chaw txhaj tshuaj thiab ntws hauv pwm kab noj hniav, qhov ntev fiber ntau poob qis heev uas qhov nruab nrab ntev fiber ntau hauv cov khoom kawg yog twb tsawg dua 1 hli, thiab yog li kev pab rau cov neeg kho tshuab cov khoom ntawm cov khoom muaj tsawg heev. LFT thev naus laus zis, ntawm qhov tod tes, txawm tias molded lossis txhaj tshuaj molded, qhov nruab nrab ntev ntawm iav fibers nyob rau hauv cov khoom xeem kawg yog tseem tsis muaj tsawg tshaj li 6 hli, uas zoo heev txhim kho cov neeg kho tshuab zog ntawm cov khoom thiab yog li muab kev cuam tshuam zoo dua thiab nkag siab thiab ua haujlwm zoo. superior thermal kuj piv rau staple fiber reinforced structural qhov chaw.
