Rau engineering frontiers qhov kev txo qhov hnyav yog qhov tseem ceeb tab sis cov txheej txheem rigidity tsis tuaj yeem cuam tshuam,LFT-G^®PA66 CF 50(Model: BC05B) yog qhov kev xaiv cov khoom siv. Qhov no sawv cev rau lub apex ntawm thermoplastic composites: ib tug Polyamide 66 matrix reinforced nrog ib tug loj heev50% Ntev Carbon Fiberload, tsim los ncaj qha hloov aerospace-qib aluminium thiab zinc alloys.

Engineers nrhiav rauPA66 CF 50Feem ntau ntsib ib qho teeb meem: tus qauv luv luv Carbon Fiber tebchaw ntawm no loading theem ua incredibly nkig. LFT-G^®overcomes no physics barrier sivNtev Carbon Fiber (LCF)tshuab. Los ntawm kev tsim ib qho kev sib txuas 3D skeletal network ntawm 10-12mm fibers, peb xa cov khoom siv nrog Tensile Modulus tshaj.33 gp uathaum tuav cov kev cuam tshuam tsis zoo tsim nyog rau dynamic industrial machinery.

Technical Data Sheet (Model: LFT-G^®PA66-BC05B)

Khoom	Test Standard	Chav tsev	Tus nqi
Base Resin	-	-	Polyamide 66 (PA66)
Cov ntsiab lus Fiber	TS EN ISO 1172	%	50% Ntev Carbon Fiber
Qhov ntom	TS EN ISO 1183	g/cm³	1.33
Tensile zog	TS EN ISO 527	MPa	290 - 310
Tensile Modulus	TS EN ISO 527	GPa	33.0 - 36.0
Flexural zog	ISO 178	MPa	400 - 420
HDT (1.80 MPa)	ISO 75	degree	254
Volume Resistivity	IEC 60093: Ua	Ω·cm	< 200

Download tiav LFT® PA66-CF50 TDS (PDF)

Vim li cas LFT-G^®Ntev Carbon Fiber?

Aerospace Performance ntawm Industrial Pricing.
50% carbon fiber composites yog ib txwm khaws tseg rau aerospace vim cov nqi siab heev. LFT-G^®democratizes cov khoom siv no los ntawm kev siv cov khoom lag luam zoo tshaj plaws hauv tsev:

Lub zog T700:Peb siv cov pa roj carbon fiber ntau hauv tsev uas ua tiav 98% ntawm cov qauv ntawm cov khoom txawv teb Tenax / Toray fibers tab sis tso cai rau peb kom nqi cov khoom kawg.30-40% qis dua.
Supply Stability:Kev tiv thaiv kab mob rau thoob ntiaj teb quotas ntshuam ntawm qib siab - qib carbon, kom ntseeg tau tias koj cov khoom loj (drones, twj, neeg hlau) yeej tsis raug tso tseg.
Zero "Dry Fiber":Peb cov txheej txheem impregnation tuag ua kom ntseeg tau tias txawm tias ntawm 50% ntom, txhua qhov filament yog coated hauv PA66, tiv thaiv delamination.

Aerospace Grade Quality

Aerospace Std / Kev Lag Luam Tus Nqi

Tau Txais Quote rau Qib BC05B

Daim Ntawv Thov: The "Black Aluminium" Era

water pump impeller.jpg

Chemical Pump Impellers

Hloov Bronze/SS. 50% LCF muab qhov tawv tawv kom tiv taus siab -RPM deformation, thaum PA66 muaj cov tshuaj tiv thaiv zoo tshaj rau hydrocarbons, tag nrho ntawm 1/5th qhov hnyav.

Drone Structural Joint.png

Hnyav-Ntiv Drone Joints

Hloov CNC Aluminium. Lub 35 GPa modulus ua kom muaj kev sib txuas ntawm caj npab kom ruaj khov, thaum txoj kev txhaj tshuaj molding txo tus nqi los ntawm 60% vs machining.

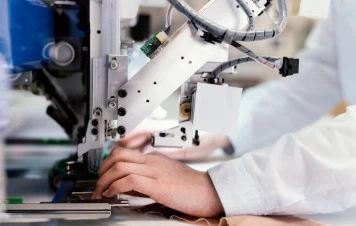

Textile Machinery

Textile Tshuab koob txaj

Yuav tsum xoom thermal expansion. PA66 CF50 ua raws li CLTE ntawm cov hlau, xyuas kom cov koob nyob ruaj khov zoo txawm tias lub tshuab ua kom sov thaum lub sijhawm ua haujlwm 24/7.

Kev Ceeb Toom: 50% Kev Sib Tw Fiber

Kws Moulding Guide:

Qhov Loj Loj:Tseem ceeb! Siv cov rooj vag loj (min 2.5mm x 5.0mm) los tiv thaiv fiber ntau clogging thiab breakage.
Qhov cua:Kev txhaj tshuaj nrawm yog xav tau los sau cov phab ntsa nyias. Maximize qhov cua kom tsis txhob muaj cov nyhuv diesel (kub).
Kev ziab:PA66 yog hygroscopic. Qhuav ntawm 85℃rau 5-6 teev. Cov dej noo <0.2%.

Cov neeg tseem nug (PAA)

Q: Puas tuaj yeem PA66 CF50 hloov 7075 Txhuas?

A: Hauv kev nruj nruj, yog.Thaum 7075 Txhuas muaj cov qauv ntawm ~ 70 GPa, PA66 CF50 (~ 35 GPa) yog ib nrab ntawm qhov hnyav. Los ntawm kev tsim cov tav thiab cov phab ntsa tuab, koj tuaj yeem ua tiav ib feem uas sib zog dua aluminium nrog qhov sib npaug ntawm cov qauv rigidity.

Q: Puas yog 50% carbon fiber ntau nkig?

A: Cov fibers luv luv yog nkig ntawm 50%. Txawm li cas los xij,LFT-G® Ntev Fibertechnology tsim ib tug entangled network uas nres tawg propagation. Qhov no khaws cia muaj zog txaus ntshai heev (Charpy> 25 kJ / m²) txawm tias muaj zog heev.

Q: Puas yog cov khoom siv hluav taws xob no?

A: High conductive.Nrog 50% carbon ntim, nws tshaj qhov percolation pib. Nws ua raws li tus neeg xyuas pib (Volume Resistivity < 100 Ohm-cm), haum rau hauv av thiab EMI shielding, tab sis tsis yog rau hluav taws xob rwb thaiv tsev.
