LFT-G® LCF40-PA66-LFT BC04B Natural Grade Composite
40% Ntev Carbon Fiber reinforcedNylon 66 (polyamide 66)PAB 66LCF40 Composite

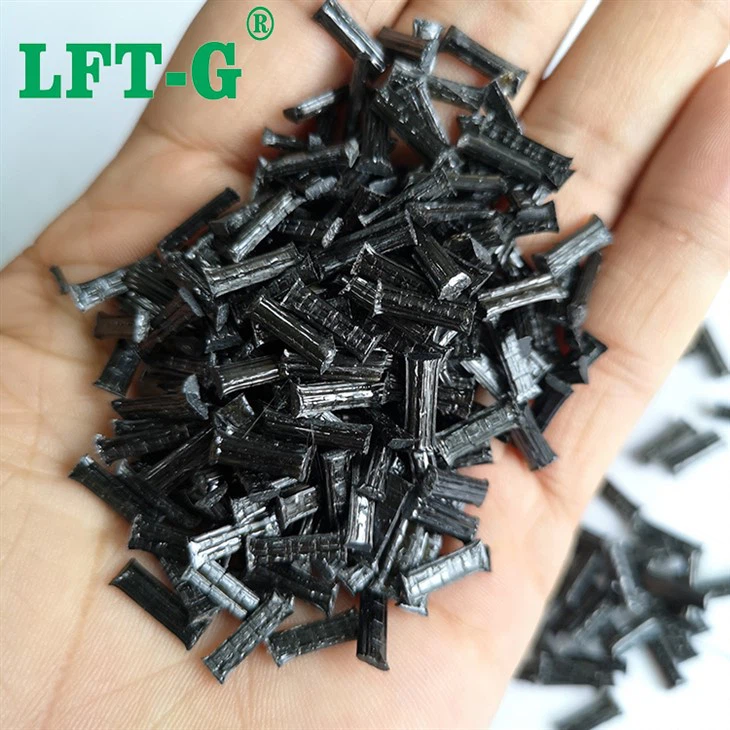

Khoom npe: ● LFT-G® -PA66-LCF40 Composite Plastic Granules
Khoom qauv: ● LFT-G® PA66-NA-BC04B
Resin hom: ● Polymer, Polypropylene
Fiber hom: ● Ntev Carbon Fiber
Cov ntsiab lus fiber ntau: ● 40%
Xim: ● dub, xim xim
Cov khoom siv: ● Txhaj tshuaj molding, zoo mechanical zog, siab zog engineer yas composite/compounds FOR Inject auto parts, home appliance parts, sport parts.

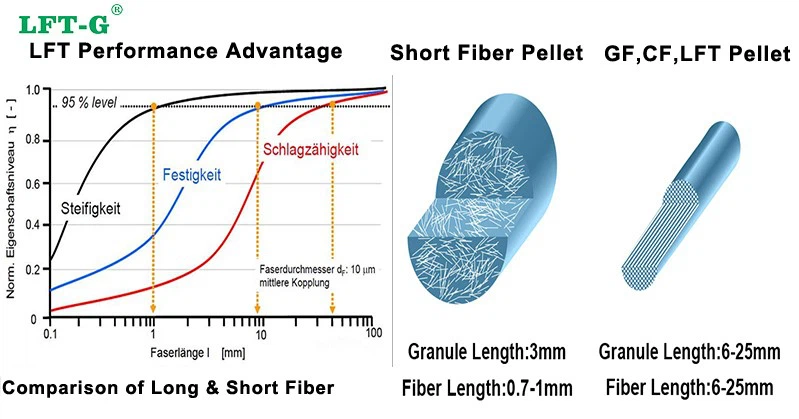

LFT-G® PA66 LCF40yog 40% ntev carbon fiber reinforced Nylon66 (PA66, polyamide66) polymer thermoplastic composite khoom.LFT-G® PA66 LCF40 cov khoom tsim los siv cov txheej txheem pultrusion uas yaj impregnates cov fiber ntau nrog cov matrix resin kom ua tau zoo.Long carbon fibers muab lub zog siab thiab nruj, zoo tiv thaiv kev cuam tshuam thiab qaug zog, thiab lwm yam. ntau qhov zoo thaum siv los ua cov khoom siv ntxiv hauv cov khoom sib xyaw.
LFT-G® PA66 LCF 50-BC05B(TDS) Daim Ntawv Teev Npe Kev Kawm Txuj Ci Ntuj
Khoom yam ntxwv
| Lub cev | Yam ntxwv yam ntxwv | Kev xeem Standard | ||
|
Specific Gravity/Density |
1.33 g / cm³ |
ASTM D -792 |
||
|
Molding Shrinkage |
0.10 - 0.30 % |
ASTM D -944 (1/8 nyob rau hauv (3.2 mm) seem) |
||
|
Neeg kho tshuab |
Yam ntxwv yam ntxwv |
Kev xeem Standard |
||
|
Tensile zog |
287 MPa ua 284 MPa ua |
ISO427 ASTM D -638 |
||
|
Tensile Modulus |
33963 MPa ua 33812 MPa ua |
ISO: 427 ASTM D -638 |
||
|
Tensile Elongation |
0.4- 1.4% 0.4- 2.4% |
ISO: 427 ASTM D -638 |
||
|
Flexural zog |
392 MPa ua 390 MPa ua |
GB/T 9341 ASTM D -790 |
||
|
Flexural Modulus |
21918 MPa ua 21486 MPa rau |
GB/T 9341 ASTM D -790 |
||
|
Notched Izod cuam tshuam |
31 KJ/m2 284 J/m |
ISO: 180 ASTM D -246 |
||
|
Notched Charpy Impact |
30 KJ/m2 |
ISO: 179 |
||
|
|
Email:candyhu@lfrtplastic.com |
|||
Rev: 09/03/2023
Dab tsi yog cov txiaj ntsig ntawm PA66 LCF composite?
PA66 LCF40 composite muaj siab tensile thiab flexural zog, uas ua rau nws ib tug haum hloov rau hlau nyob rau hauv ntau daim ntawv thov. Nws muaj lub zog-rau-qhov hnyav dua li txhuas thiab tuaj yeem siv rau hauv cov ntawv thov uas txo qhov hnyav yog qhov tseem ceeb. Piv txwv li, hauv kev lag luam automotive, PA66 LCF40 composite yog siv los hloov cov khoom hlau, xws li cav cav thiab crankshaft npog, kom txo lub tsheb hnyav thiab txhim kho roj efficiency.
Lwm qhov zoo ntawm PA66 LCF40 composite yog nws yooj yim ntawm kev ua. Nws tuaj yeem raug molded rau hauv ntau yam duab thiab ntau thiab tsawg siv kev txhaj tshuaj molding, compression molding, lossis resin hloov molding txheej txheem. Qhov no ua rau nws tsim nyog rau cov khoom loj ntawm qhov chaw nrog cov geometry complex.
Cov ntawv thov ntawm LFT PA66
PA66 LCF40 composite yog ib qho kev daws teeb meem zoo tshaj plaws rau kev ua haujlwm siab uas yuav tsum muaj lub zog tshwj xeeb, ua haujlwm ntev, thiab tiv thaiv kev cuam tshuam, qaug zog, thiab nkag mus. Nws muaj qhov zoo ntawm cov khoom siv ib txwm muaj xws li hlau thiab yas, nrog rau kev nruj nruj, lub zog, thiab qhov ruaj khov.Raws li qhov kev thov rau cov ntaub ntawv ua tau zoo tseem nce ntxiv, PA66 LCF40 composite yuav ua lub luag haujlwm tseem ceeb hauv ntau yam. ntawm kev siv.
