PP LGF30 DATA yog dab tsi?
Cov ntaub ntawv qhia ntxaws ntxaws txog cov khoom LFT-G® PP-LGF30 los ntawm XIAMEN LFT Composite Plastic Co., LTD.
Qhov noLFT-G® PP-LGF30 yog 30% ntev iav fiber reinforced thermoplastic Copo polypropylene compositenrog zoo mechanical zog thiab txhaj tshuaj molding qib yam ntxwv. Cov ntaub ntawv muaj cov ncauj lus kom ntxaws txog cov khoom siv, kev ua haujlwm tsis zoo, cov qauv ntsuas lub cev thiab cov tshuab, cov khoom siv thermal, nplaim hluav taws, thiab kev ceev faj yuav tsum tau ua thaum txhaj tshuaj molding txheej txheem. Tsis tas li ntawd, ua cov lus qhia rau cov khoom siv thiab cov txheej txheem pom zoo yog muab los xyuas kom meej qhov zoo ntawm cov khoom kawg.
cov khoom tseem ceeb Properties
Cov ntsiab lus tseem ceeb
- Khoom npe: LFT-G® PP-LGF30 NG03
- Resin Hom: Copo-polypropylene PP (CPP)
- Hom Fiber: Ntev iav Fiber
- Fiber Cov ntsiab lus: 30%
- Xim: Dub
- Cov Khoom Siv Khoom: Haum rau kev txhaj tshuaj molding, nrog cov khoom siv zoo.
Lub cevkhoom
- Qhov hnyav: 1.11 g / cm³ (ASTM D-792)
- Moulding shrinkage: 0.20 - 0.30% (ASTM D-955)
- Kub distortion kub: 159℃(ISO 75-2).
Mechanical zog
- Tensile zog: 121Mpa (ISO 527 / ASTM D-638)
- Tensile Modulus: 6963Mpa (ISO 527 / ASTM D-638)
- Tensile elongation: 1.8-2.8% (ISO 527 / ASTM D-638)
- Flexural zog: 156 MPa (GB/T 9341) /
155 MPa (ASTM D-790)
- Flexural modulus: 5856 MPa (GB/T 9341) /
5867 MPa (ASTM D-790)
- Notched Izod Impact: 38 KJ/m² (ISO 180) /
299 J / m (ASTM D-256)
- Notched Izod Impact: 34 KJ/m² (ISO 179)
Nplaim retardant zog
- nplaim taws tsis kam: HB @ 1.5 hli (ASTM D-635)
- Cov Txheej Txheem Ua Haujlwm
- Txhaj siab: 69 ~ 103 MPa
- Melt kub: 210 ~ 250 degree
- Pwm kub: 38 ~ 69 degree
- Lub sij hawm ziab: 2-4 teev @ 90-100 degree
- Cov ntsiab lus noo noo tom qab ziab: <0.1%.
- Cov txheej txheem sau tseg
- Cov txiaj ntsig zoo rau cov ntaub ntawv yog raws li kev sim hauv chav kuaj sim thiab yuav tsum tsis txhob siv los teeb tsa qhov siab tshaj plaws lossis qhov tsawg kawg nkaus rau qhov tshwj xeeb.
- Nws yog lub luag haujlwm ntawm tus neeg siv khoom los ntsuas qhov sib txawv ntawm cov txheej txheem thiab ntsuas qhov ntsuas kub ntawm lub tshuab chim kom tsis txhob overheating ntawm cov khoom.Nws raug nquahu kom siv lub tshuab dehumidifying kom qhuav thiab ntsuas qhov ziab kom qhuav thiab lub sijhawm raws li qhov xwm txheej ntawm cov khoom siv ziab tiag tiag. Ua ntej txhaj tshuaj molding, nws raug nquahu kom siv lub tshuab ziab khaub ncaws kom qhuav thiab ntsuas qhov ntsuas kub thiab lub sij hawm raws li cov khoom siv kom qhuav.
Khoom piav qhia

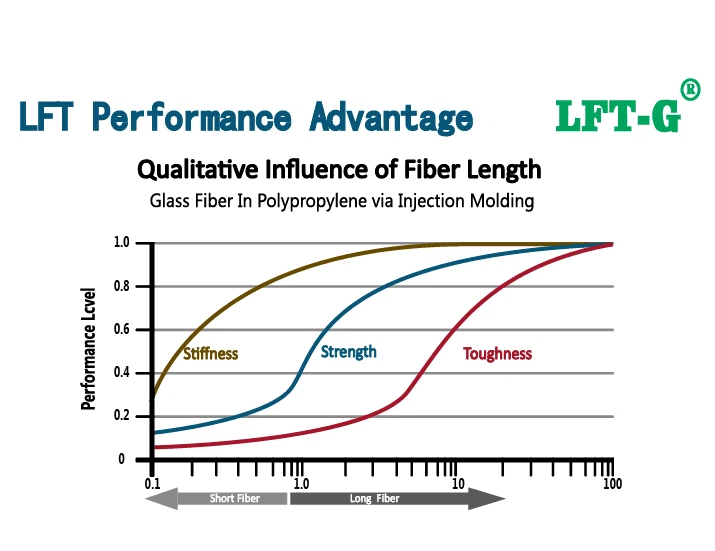

LFT-G®yog cov khoom siv ntev fiber ntau reinforced thermoplastic haum rau kev txhaj tshuaj, compression thiab extrusion molding.Retention ntawm fiber ntau ntev hauv cov khoom tiav yog kev ua haujlwm tseem ceeb, thiab siab shear raug txo los ntawm kev tsim pwm thiab siv cov kos li qub, thiab lwm yam.
Khoom siv
Txhaj Moulding Guideline
Feem ntau siv round runners nrog qhov tsawg kawg nkaus txoj kab uas hla ntawm 5-6MM thiab tsis muaj kev txwv siab tshaj plaws ntawm lub rooj vag loj. Tshem cov sprue thiab taper mus rau lub rooj vag, siv cov sprues loj thiab cov kua nplaum ncaj nraim. Nws raug nquahu kom tsis pub ntau tshaj 3-5% ntawm cov khoom siv rov ua dua ntxiv rau cov txheej txheem molding kom txo tau qhov kev ua tau zoo thiab kev ua haujlwm tsis zoo. Lub tshuab txhaj tshuaj molding yuav tsum tau muab yaug nrog polyethylene lossis polypropylene ua ntej kaw, thiab cov khoom iav ntev yuav tsum tsis txhob tso rau hauv lub tog raj kheej pub.
